FJ9732-0808S Aeroquip by Danfoss | Female ORS Swivel 100R2 Skive Style Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel

FJ9732-0808S Aeroquip by Danfoss | Female ORS Swivel 100R2 Skive Style Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel

Name: FJ9732-0808S Aeroquip by Danfoss | Female ORS Swivel 100R2 Skive Style Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: FJ9732-0808S Danfoss
Price: 57.62 USD
Availability: InStock

$57.62 - $57.62

$57.62

$57.62 - $57.62

$57.62

Aeroquip® by Danfoss

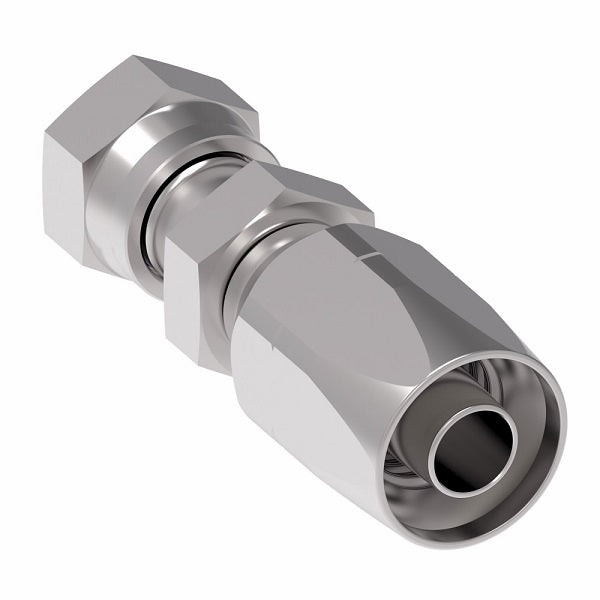

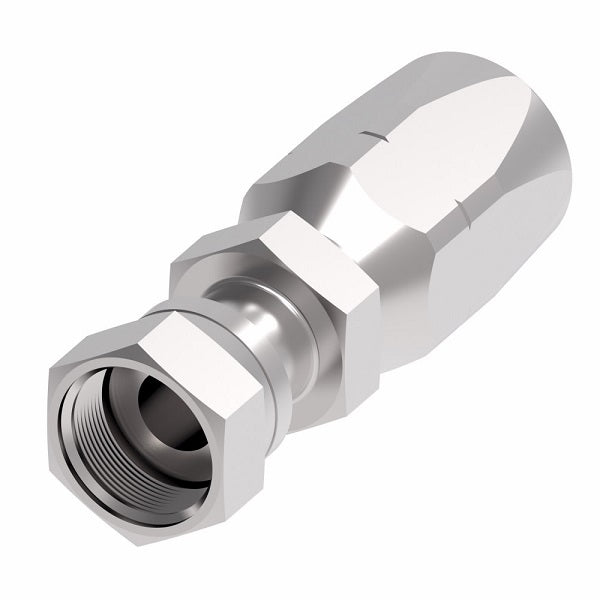

100R2 Skive Style Reusable Hose Fitting - FJ Series - Female O-Ring Face Seal (ORS) Swivel - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FJ9732-0808S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/2in Female O-Ring Face Seal, 1/2in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2766 Series \| 2781 Series \| FC195 Series

Technical Info:
Reusable Fitting Socket Data.PDF
Note:
For use with hose: 2766. Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.


Steel Part Number	Hose Size	Thread	A	D	EØ
FJ9732-0404S	-04	9/16-18	2.75"	1.52"	0.17"
FJ9732-0606S	-06	11/16-16	3.02"	1.55"	0.26"
FJ9732-0808S	-08	13/16-16	3.40"	1.89"	0.39"
FJ9732-1010S	-10	1-14	3.58"	2.03"	0.50"
FJ9732-1212S	-12	1-3/16-12	4.05"	2.18"	0.61"
FJ9732-1616S	-16	1-7/16-12	4.78"	2.73"	0.82"
