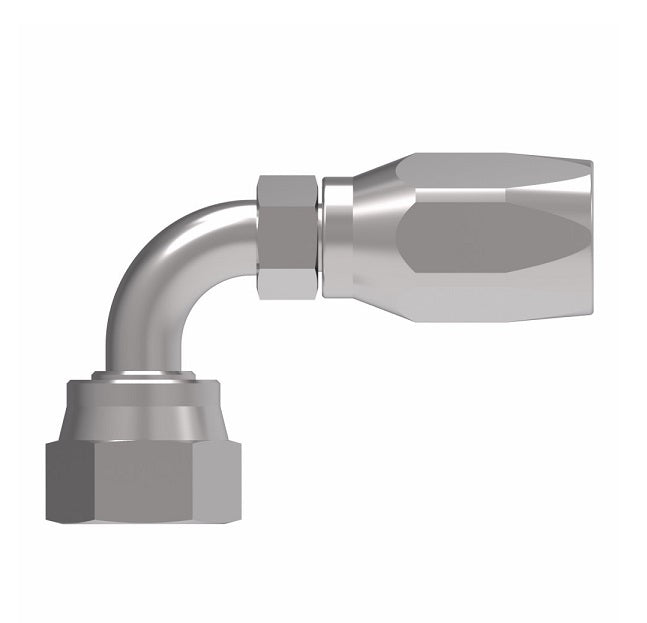

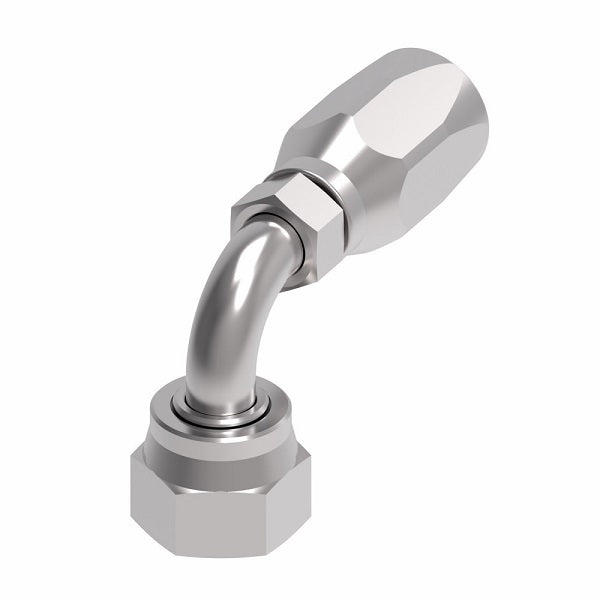

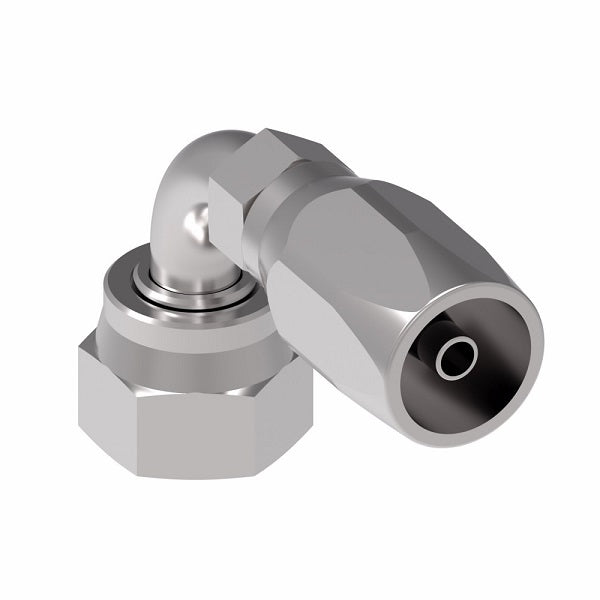

FJ9734-0808S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel
FJ9734-0808S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel
FJ9734-0808S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel
FJ9734-0808S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel

FJ9734-0808S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel

$74.36 - $74.36
$74.36
$74.36 - $74.36
$74.36

Aeroquip® by Danfoss
100R2 Skive Style Reusable Hose Fitting - FJ Series - Female O-Ring Face Seal (ORS) Swivel Long Drop - 90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FJ9734-0808S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/2in Female O-Ring Face Seal, 1/2in Reusable Hose End
Material(s): Steel
Special Properties: Swivel, Short Drop
Compatible with the following Series: 2766 Series  |   2781 Series  |   FC195 Series
Technical Info:
Note:
  • For use with hose: 2766.
  • Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size "T" Thread A D EØ H
FJ9734-0808S -08 13/16-16 3.02" 1.52" 0.37" 1.15"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
