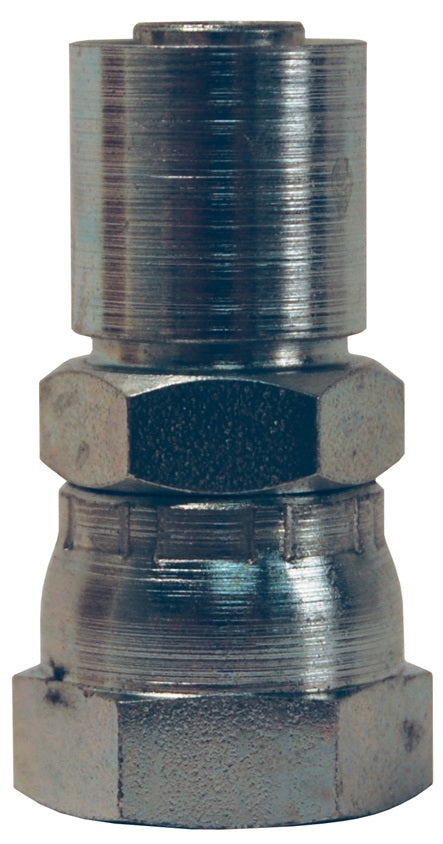

FJC-16-16 by Dixon Valve | Crimp Fitting for PTFE Hose | with Crimp Collar | 1" Female JIC Swivel x -16 Hose Size | Carbon Steel

Save $2.15 Save $2.15
Original price $21.53
Original price $21.53 - Original price $21.53
Original price $21.53
Current price $19.38
$19.38 - $19.38
Current price $19.38

Dixon Valve
PTFE Hose Fitting | Nominal Crimp Fitting | Female JIC Swivel

Suitable for conveying chemicals, foods, pharmaceuticals, oils, gas, fuels and steam.

Crimp Collars for all Nominal fittings are included.


Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FJC-16-16 Dixon
Series: FJC Series
Shape (Orientation): Straight
Material(s): Carbon Steel
Special Properties: Swivel
Compatible with the following Series: WSB Series  |   BSB Series
Use:
  • For use with nominal smooth bore PTFE hoses.
Carbon Steel
Part Number
304 Stainless Steel
Part Number
Brass
Part Number
Hose Size Thread Size
FJC-04-04 FJS-04-04 FJB-04-04 -04 1/4" Female JIC Swivel
FJC-05-05 FJS-05-05 FJB-05-05 -05 5/16" Female JIC Swivel
FJC-06-06 FJS-06-06 FJB-06-06 -06 3/8" Female JIC Swivel
FJC-08-08 FJS-08-08 FJB-08-08- -08 1/2" Female JIC Swivel
FJC-10-10 FJS-10-10 FJB-10-10 -10 5/8" Female JIC Swivel
FJC-12-12 FJS-12-12 FJB-12-12 -12 3/4" Female JIC Swivel
FJC-16-16 FJS-16-16 FJB-16-16 -16 1" Female JIC Swivel
FJC-20Z-20 - - -20Z 1-1/4" Female JIC Swivel
