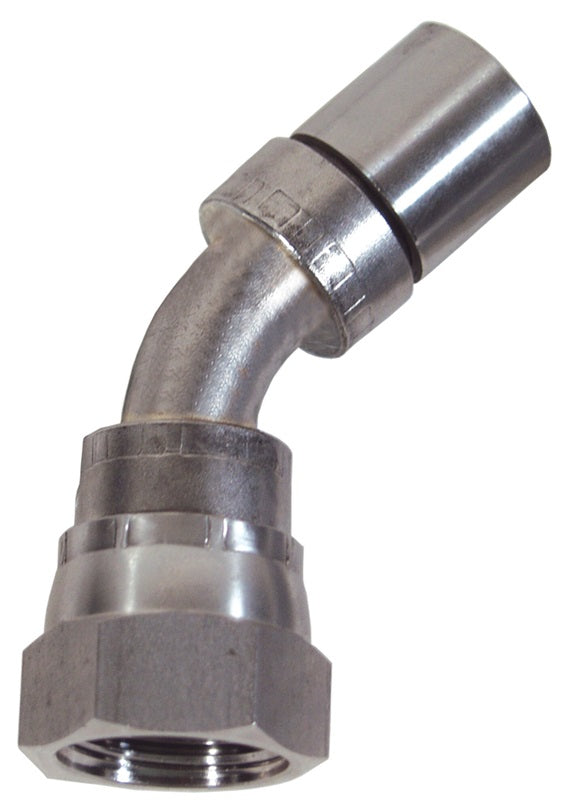

FJS45-05-05 by Dixon Valve | Crimp Fitting for PTFE Hose | with Crimp Collar | 45° Elbow | 5/16" Female JIC x -05 Hose Size | 304 Stainless Steel

Save $26.90

$67.25

$67.25 - $67.25

$67.25

$40.35

$40.35 - $40.35

$40.35

Dixon Valve
PTFE Hose Fitting | Nominal Crimp Fitting | 45° Elbow | Female JIC

Crimp Collars for all Nominal fittings are included.

Specifications for Variant SKU: FJS45-05-05 Dixon
Series:	FJS45 Series
Shape (Orientation):	45 Degree
Ends Configuration:	5/16in Hose Barb, 5/16in Female JIC
Material(s):	304 Stainless Steel
Compatible with the following Series:	WSB Series \| BSB Series

Use:
For use with nominal smooth bore PTFE hoses.

304 Stainless Steel Part Number	Carbon Steel Part Number	Hose Size	Thread Size
FJS45-03-03	FJC45-03-03	-3	3/16"
FJS45-04-04	FJC45-04-04	-4	1/4"
FJS45-05-05	FJC45-05-05	-5	5/16"
FJS45-06-06	FJC45-06-06	-6	3/8"
-	FJC45-08-08	-8	1/2"
FJS45-10-10	FJC45-10-10	-10	5/8"
-	FJC45-12-12	-12	3/4"
-	FJC45-16-16	-16	1"
