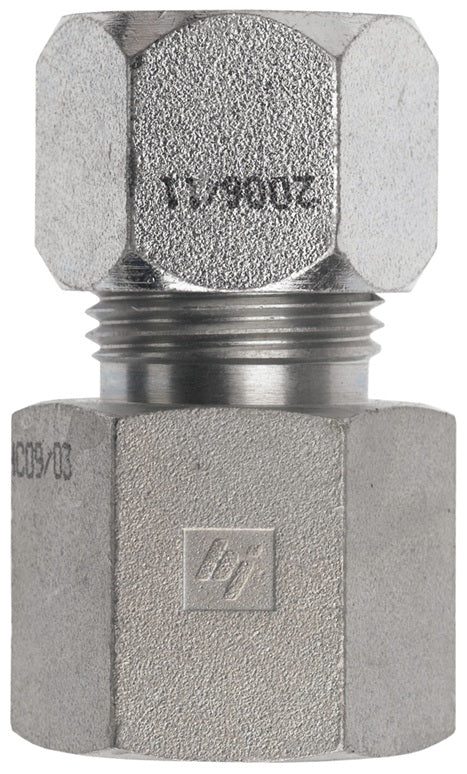

FLC2405-04-02 by Dixon Valve | Flareless Bite Type Fitting | 1/4" Male Tube x 1/8" Female NPTF | Steel

FLC2405-04-02 by Dixon Valve | Flareless Bite Type Fitting | 1/4" Male Tube x 1/8" Female NPTF | Steel

Save $4.38 Save $4.38
$10.95
$10.95 - $10.95
$10.95
$6.57
$6.57 - $6.57
$6.57

Dixon Valve
Flareless Bite Type Fitting | Male Tube x Female NPTF

Well-suited for a variety of processing and general industry hydraulic applications.

Fittings are suitable for sub-zero through elevated temperature applications.
Specifications for Variant SKU: FLC2405-04-02 Dixon
Series: FLC2405 Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Tube Compression, 1/8in Female NPTF
Material(s): Steel
Applications:
  • Chemical, pulp and paper, oil and gas refineries, military, air compressors and machine tools.
Features:
  • 3 piece design including only one ferrule eliminates possible make-up errors that may occur using a twin ferrule tube fitting.
  • Minimal risk of improper assembly as the ferrule visibly bites into the tubing which allows installer to visually inspect the bite quality.
Material:
  • Steel.
Approvals:
  • Exceeds Military (MIL F18866) and SAE J514 standards
Specifications:
  • Temperature rating is limited by the material chosen.
  • Pressure ratings are determined by the size (O.D.) and wall thickness (inches/mm) of the tubing on which they are to be installed.
Assembly Instructions:
  • 1. Cut, deburr, and clean tubing.
  • 2. Pre-set ferrule onto tubing.
  • 3. Inspect ferrule bite in tubing by disassembling the fitting and visually inspecting the deburred end of tube for slight indentation.
  • 4. Finger tighten nut and then further wrench tighten nut another 1/3 to 1/2 turn.
Part Number Tube O.D. Male NPTF
FLC2405-02 1/8" 1/8"
FLC2405-04-02 1/4" 1/8"
FLC2405-04 1/4" 1/4"
FLC2405-05-02 5/16" 1/8"
FLC2405-06-04 3/8" 1/4"
FLC2405-06 3/8" 3/8"
FLC2405-08-04 1/2" 1/4"
FLC2405-08-06 1/2" 3/8"
FLC2405-08 1/2" 1/2"
FLC2405-10-08 5/8" 1/2"
FLC2405-12 3/4" 3/4"
FLC2405-16 1" 1"
FLC2405-20 1-1/4" 1-1/4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
