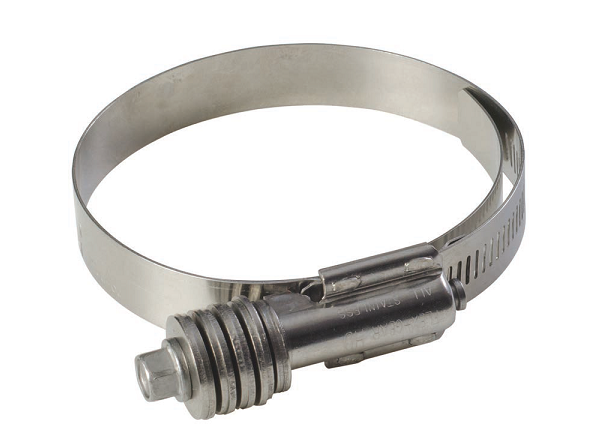

FLX2584-0812 by FlexFab | Series 2584 | Constant Tension Clamps | 7.25" Min Dia | 8.13" Max Dia | 10 Per pack

Save $11.05 Save $11.05
Original price $110.53
Original price $110.53 - Original price $110.53
Original price $110.53
Current price $99.48
$99.48 - $99.48
Current price $99.48

Flexfab Industrial Hose - Series 2584 - Constant Tension Clamps

Package Quantity: 10 EA

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for SKU: FLX2584-0812 Flexfab
Series: Series 2584
Material(s): 300 Stainless Steel
Overview:
  • Belleville spring and clamp construction is built to respond to constant temperature fluctuations. The larger, heavy-gauge, precision-formed springs provide higher rates of band tension and adjustment for a more dependable seal. The inner liner protects against shearing of the hose surface. This type of clamp provides a uniform 360° seal.
Specifications:
  • All 300 grade stainless steel Constant Tension lined clamps
  • Hex Head: 3/8"
  • Band Width: 5/8"
Applications:
  • Recommended for silicone coolant hose, heater hose, marine, and silicone tubing
  • Resists salt water and may be used in marine applications
Coolant And Heater Hose Clamping Instructions:
  • Worm gear or constant torque type stainless steel clamps with inner liner are recommended for silicone heater and coolant hose. Initial clamp torque should be 40 inch-lbs. If re-torqueing is required, it should be limited to 20 inch-lbs. Do not use serrated, slotted, or wire type clamps.
Part Number Min. Dia. (in.) Max. Dia.(in.) PackSize Weightlbs - Per 10
FLX2584-0175 1.00" 1.75" 10 Pieces 2 lbs
FLX2584-0212 1.25" 2.13" 10 Pieces 2 lbs
FLX2584-0262 1.75" 2.63" 10 Pieces 2 lbs
FLX2584-0312 2.25" 3.13" 10 Pieces 2 lbs
FLX2584-0362 2.75" 3.63" 10 Pieces 2 lbs
FLX2584-0412 3.25" 4.13" 10 Pieces 2.5 lbs
FLX2584-0462 3.75" 4.63" 10 Pieces 2.5 lbs
FLX2584-0512 4.25" 5.13" 10 Pieces 2.5 lbs
FLX2584-0562 4.75" 5.63" 10 Pieces 2.5 lbs
FLX2584-0612 5.25" 6.13" 10 Pieces 2.5 lbs
FLX2584-0662 5.75" 6.63" 10 Pieces 3 lbs
FLX2584-0712 6.25" 7.13" 10 Pieces 3 lbs
FLX2584-0762 6.75" 7.63" 10 Pieces 3 lbs
FLX2584-0812 7.25" 8.13" 10 Pieces 3 lbs
FLX2584-0862 7.75" 8.63" 10 Pieces 3 lbs
FLX2584-0912 8.25" 9.13" 10 Pieces 3.5 lbs
*Specifications for reference only.
Flexfab

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
