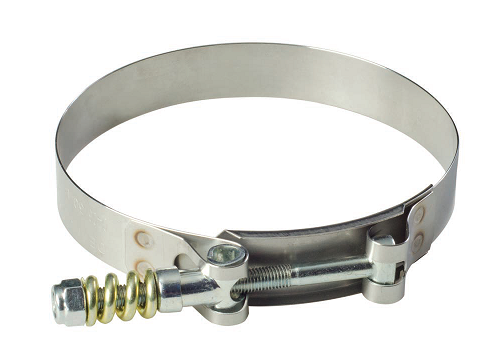

FLX2588-0506 FlexFab Series 2588 Spring-Loaded T-Bolt clamps - 5.0652" Min Dia - 5.375" Max Dia - 10 Per pack

FLX2588-0506 by FlexFab | Series 2588 | Spring-Loaded T-Bolt clamps | 5.0652" Min Dia | 5.375" Max Dia | 10 Per pack

Save $50.27

$125.67

$125.67 - $125.67

$125.67

$75.40

$75.40 - $75.40

$75.40

Flexfab Industrial Hose - Series 2588 - Spring-Loaded T-Bolt Clamps

Package Quantity: 10 EA

Specifications for Variant SKU: FLX2588-0506 Flexfab
Series:	Series 2588
Material(s):	300 Stainless Steel
Minimum Clamp I.D.:	5.0652
Maximum Clamp I.D.:	5.375

Overview:
Spring-Loaded T-bolt clamps are designed to compensate for fluctuations in all types of hose line assemblies. When temperature and/or pressure changes cause hose lines to expand or contract, Spring-Loaded T-bolt Clamps adjust accordingly to provide constant band tension.
Specifications:
All 316 grade stainless steel Spring-Loaded T-bolt clamps Hex Head: 5/16" Band Width: 3/4"
Applications:
Recommended for silicone coolant hose, CAC hose, turbo sleeves, marine hose, 90 and 45 degree elbows, and silfab ducting Resists salt water and may be used in marine applications

Part Number	Min. Dia. (in.)	Max. Dia.(in.)	PackSize	Weightlbs - Per 10
FLX2588-0306	3.0625"	3.375"	10 Pieces	2 lbs
FLX2588-0356	3.562"	3.875"	10 Pieces	2 lbs
FLX2588-0406	4.0625"	4.375"	10 Pieces	2 lbs
FLX2588-0456	4.562"	4.875"	10 Pieces	2 lbs
FLX2588-0506	5.0652"	5.375"	10 Pieces	2 lbs

*Specifications for reference only.

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
