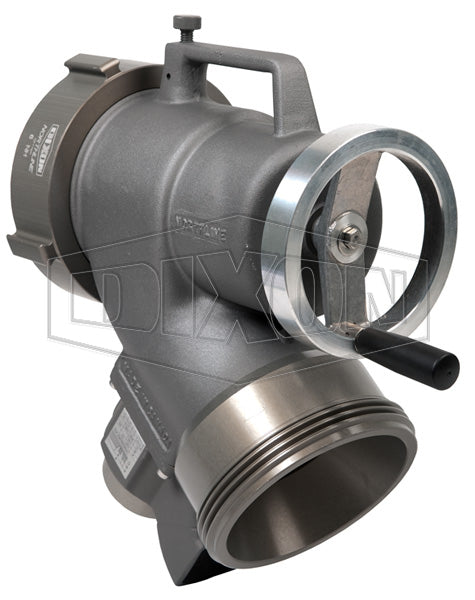

FMGR45F50F Dixon Aluminum Alloy Piston Intake Relief Valve - 4-1/2" Male NST(NH) x Two 5" Female NST(NH) Swivel Ends

FMGR45F50F Dixon Aluminum Alloy Piston Intake Relief Valve - 4-1/2" Male NST(NH) x Two 5" Female NST(NH) Swivel Ends

Save $231.61 Save $231.61
$2,228.21
$2,228.21 - $2,228.21
$2,228.21
$1,996.60
$1,996.60 - $1,996.60
$1,996.60

Dixon Fire Fittings
Piston Intake Relief Valve

Permits safe controlled flow to the intake pump and can also be used to draft.
Specifications for Variant SKU: FMGR45F50F Dixon
Shape (Orientation): 45 Degree
Ends Configuration: 4-1/2in Male NST, 5in Female NST, 5in Female NST, Some Ends Match
Material(s): Aluminum
Features:
  • Standard with a 30° elbow (permitting smoother water flow), adjustable relief valve, retractable knob on hand wheel and air bleed off.
  • 9 easy turns open and close the valve.
  • 280 PSI at 70°F (21°C), without relief valve.
  • 4-1/2" minimum waterway.
  • Finish anodized throughout - minimum thickness 0.001". (Aluminum Alloy, 356-T6)
  • Relief valve - double spring, cartridge type, adjustable from 50 to 200 PSI.
Part Number Inlet Outlet Length Width Height
Storz x Female NST(NH) Swivel
FSGR440F 4" 4" 12" 8" 17"
FSGR445F 4" 4-1/2" 12" 8" 17"
FSGR450F 4" 5" 12" 8" 17"
FSGR460F 4" 6" 12" 8" 17"
FSGR540F 5" 4" 12" 8" 17"
FSGR550F 5" 5" 12" 8" 17"
FSGR560F 5" 6" 12" 8" 17"
Male NST(NH) x Two Female NST(NH) Swivels
FMGR40F40F 4" 4", 4" 12" 8" 17"
FMGR40F45F 4" 4-1/2", 4-1/2" 12" 8" 17"
FMGR40F50F 4" 5", 5" 12" 8" 17"
FMGR40F60F 4" 6", 6" 12" 8" 17"
FMGR45F40F 4-1/2" 4", 4" 12" 8" 17"
FMGR45F45F 4-1/2" 4-1/2", 4-1/2" 12" 8" 17"
FMGR45F50F 4-1/2" 5", 5" 12" 8" 17"
FMGR45F60F 4-1/2" 6", 6" 12" 8" 17"
FMGR50F40F 5" 4", 4" 12" 8" 17"
FMGR50F45F 5" 4-1/2", 4-1/2" 12" 8" 17"
FMGR50F50F 5" 5", 5" 12" 8" 17"
FMGR50F60F 5" 6", 6" 12" 8" 17"
FMGR60F60F 6" 6", 6" 12" 8" 17"
Replacement Parts
Part Number Description Weight
PV-HDWHL Complete handwheel for piston valve 1.5890
PV-KNOB Retractable knob for piston valve handwheel 0.2500
