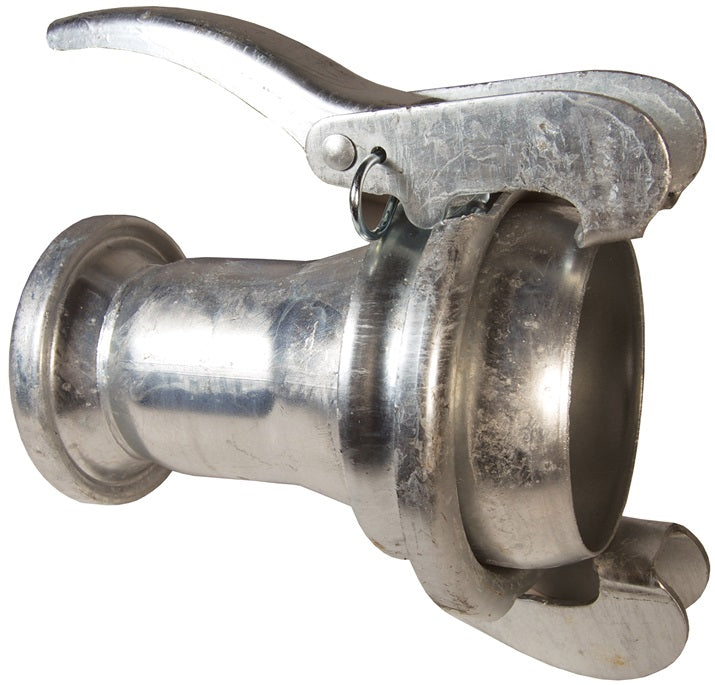

FMI31968 by Dixon Valve | Type B (Bauer Style) Quick Connect Fitting | Increaser | 6" Female Size x 8" Male Size | Galvanized Steel

Name: FMI31968 by Dixon Valve | Type B (Bauer Style) Quick Connect Fitting | Increaser | 6" Female Size x 8" Male Size | Galvanized Steel
Brand: Dixon
SKU: FMI31968 Dixon
Price: 331.31 USD
Availability: InStock

Save $220.87

$552.18

$552.18 - $552.18

$552.18

$331.31

$331.31 - $331.31

$331.31

Dixon Valve
Type B (Bauer Style) Quick Connect Fitting | Increaser | Male x Female

Used primarily on irrigation and suction lines.

Specifications for Variant SKU: FMI31968 Dixon
Shape (Orientation):	Straight
Ends Configuration:	6in Female Bauer - Type B, 8in Male Bauer - Type B
Material(s):	Galvanized Steel

Features:
Bauer style locks on the male side. Has a double pin locking lever for smooth closing action. Equipped with a safety pin to prevent accidental openings.
Materials:
Hot dipped, galvanized Gasket included
Safety Notes:
These fittings are not recommended for chemicals or any hazardous type materials where the possibility of leakage would result in health or environmental concerns.

Type B (Bauer-Lock) \| Increaser \| Male x Female

Part Number	Size
FMI31946	4"	6"
FMI31968	6"	8"
FMI319810	8"	10"
FMI3191012*	10"	12"

*10" and 12" supplied with ACB304 lever assist bar

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
