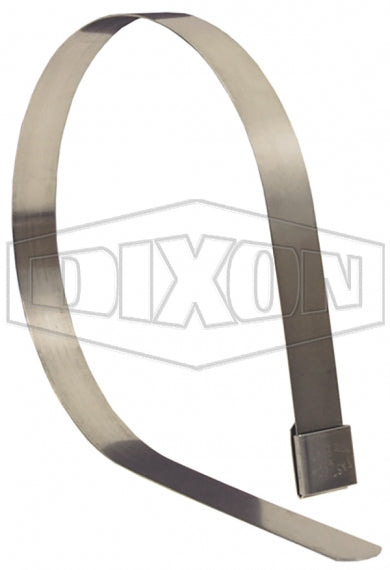

FO40 by Dixon Valve | FO-Series | Open End Center Punch Band Clamp | 5/8" Band Width | 10" Clamp ID | Galvanized Steel Band & Buckle | Box of 25

Save $12.58

$113.25

$113.25 - $113.25

$113.25

$100.67

$100.67 - $100.67

$100.67

Dixon Valve
Open End Center Punch Band Clamps | FO-Series

Quantity

Specifications for Variant SKU: FO40 Dixon \| 25 \|
Series:	FO-Series
Material(s):	Galvanized Steel
Clamp Width:	0.625

Installation Tools:
Install with center punch tools: F1 F38, F40, and F100. Other manufacturers' punch style tools may also be used.
Materials:
On stainless clamps, bands are 300-series stainless steel, buckles are 302-series stainless steel.

Part Number	Material	Band Width	Clamp ID	Band Thickness
FOS3	Stainless Steel	3/8"	13/16"	.020"
FOS311	Stainless Steel	3/8"	1-3/8"	.020"
FOS316	Stainless Steel	3/8"	2"	.020"
FOS325	Stainless Steel	3/8"	3-1/8"	.020"
FOS8	Stainless Steel	5/8"	2"	.022"
FOS10	Stainless Steel	5/8"	2-1/2"	.022"
FOS12	Stainless Steel	5/8"	3"	.022"
FOS14	Stainless Steel	5/8"	3-1/2"	.022"
FOS16	Stainless Steel	5/8"	4"	.022"
FOS18	Stainless Steel	5/8"	4-1/2"	.022"
FOS20	Stainless Steel	5/8"	5"	.022"
FOS24	Stainless Steel	5/8"	6"	.022"
FOS28	Stainless Steel	5/8"	7"	.022"
FOS32	Stainless Steel	5/8"	8"	.022"

FO3	Galvanized Steel	3/8"	13/16"	.025"
FO311	Galvanized Steel	3/8"	1-3/8"	.025"
FO316	Galvanized Steel	3/8"	2"	.025"
FO325	Galvanized Steel	3/8"	3-1/8"	.025"
FO8	Galvanized Steel	5/8"	2"	.025"
FO10	Galvanized Steel	5/8"	2-1/2"	.025"
FO12	Galvanized Steel	5/8"	3"	.031"
FO14	Galvanized Steel	5/8"	3-1/2"	.031"
FO16	Galvanized Steel	5/8"	4"	.031"
FO18	Galvanized Steel	5/8"	4-1/2"	.031"
FO20	Galvanized Steel	5/8"	5"	.031"
FO24	Galvanized Steel	5/8"	6"	.031"
FO28	Galvanized Steel	5/8"	7"	.031"
FO32	Galvanized Steel	5/8"	8"	.031"
FO36	Galvanized Steel	5/8"	9"	.031"
FO40	Galvanized Steel	5/8"	10"	.031"
FO48	Galvanized Steel	5/8"	12"	.031"
FO56	Galvanized Steel	5/8"	14"	.031"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
