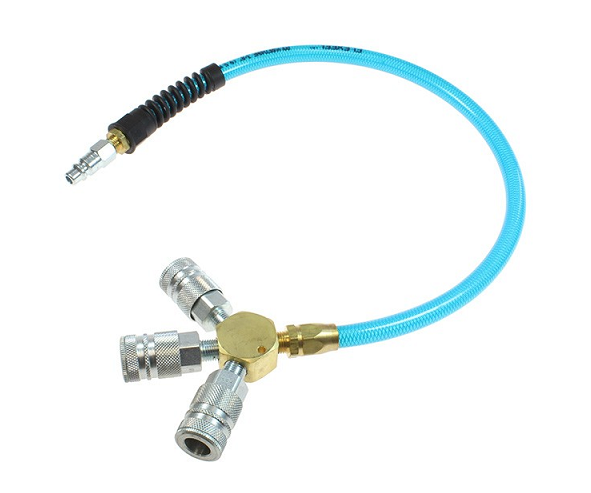

FP0636C-58C by Coilhose | Flexeel Pigtail Manifold | 3/8" Industrial Interchange | Trans Blue | Polyurethane | 36ft

Save $77.46

$193.65

$193.65 - $193.65

$193.65

$116.19

$116.19 - $116.19

$116.19

Coilhose Pneumatics - Straight Hose - Pigtail Manifolds

Specifications for Variant SKU: FP0636C-58C Coilhose
Brand:	FLEXEEL
Hose Color(s):	Blue
Material(s):	Polyurethane

Overview:
Directly connect to a compressor and split to three separate connections with the Flexeel Pigtail Manifold. These manifolds feature a short length of Flexeel Polyurethane Hose with a flat hex manifold and multiple high quality couplers. Takes stress off of the main connection point, and allows up to three users to share a compressor.
Features:
Eliminates strain at the main connection point Mounting hole allows attachment to beams Constructed of Polyurethane Flexeel Features Reusable Brass Fittings Contains heavy-duty components: Flexeel whip hose, solid brass Flat Hex manifold, 3 six-ball couplers Made in USA

Part No. Blue	Part No. Red	Part No. Yellow	Length	Coupler Connection
FP0624C-15X	FP0624C-15XTR	FP0624C-15XTY	24"	1/4" 6 Ball Industrial
FP0624C-16X	FP0624C-16XTR	-	24"	1/4" 6 Ball Automotive
FP0636C-15X	FP0636C-15XTR	-	36"	1/4" 6 Ball Industrial
FP0636C-16X	-	-	36"	1/4" 6 Ball Automotive
FP0648C-15X	-	-	48"	1/4" 6 Ball Industrial
-	-	FP0648C-16XTY	48"	1/4" 6 Ball Automotive
FP0624C-58C	-	-	24"	3/8" Industrial
FP0624C-59C	-	-	24"	3/8" Automotive
FP0636C-58C	FP0636C-58CTR	-	36"	3/8" Industrial
FP0648C-58C	-	-	48"	3/8" Industrial
FP0648C-59C	-	-	48"	3/8" Automotive

os<

Coilhose Pneumatics

Coilhose Pneumatics proudly supplies distributors with an extensive assortment of superior pneumatic accessories. From couplers and fittings to blow guns and air hoses, we have it all. Browse our selection to find the best pneumatic accessories available.
