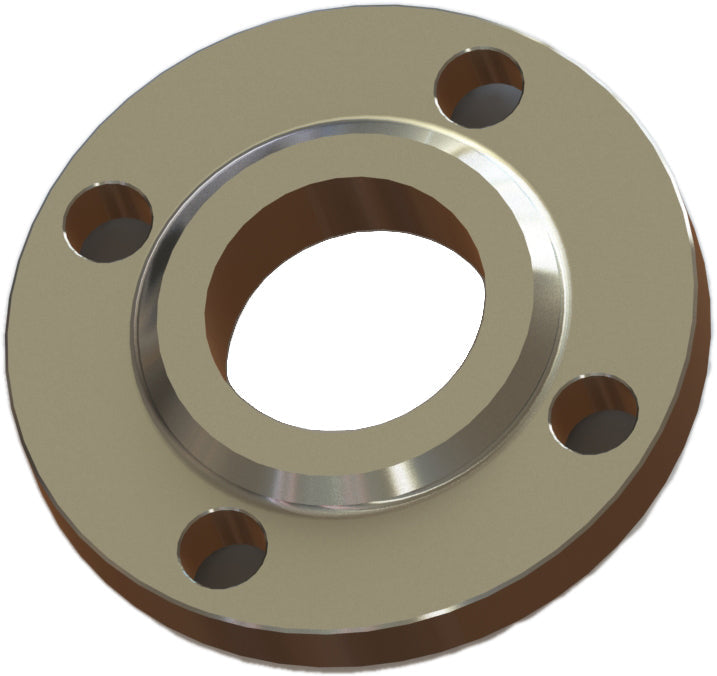

FS150SS-4 by Campbell Fittings | Slip-On Flange | 1" 150# Flange x 1" Weld End | 316 Stainless Steel

FS150SS-4 by Campbell Fittings | Slip-On Flange | 1" 150# Flange x 1" Weld End | 316 Stainless Steel

Save $15.46 Save $15.46
$75.70
$75.70 - $75.70
$75.70
$60.24
$60.24 - $60.24
$60.24

by Campbell
Crimpnology Nipple:FS150SS Flange-Slip On (150lb.)
Specifications for Variant SKU: FS150SS-4 Campbell Fittings
Series: FS150S Series
Ends Configuration: 1in 150# Flange, 1in Weld End
Material(s): 316 Stainless Steel
Recommended Use:
  • Multi-purpose fluid, chemical, bulk handling
Recommended Hose Attachments:
  • Interlocking ferrules
Features and Benefits:
  • Designed for use with Campbell Interlocking Ferrules.
  • Fittings use the same ferrules as Campbell COBRA Parts C and E, Chemjoint Couplings, and Goodyear InstaLock Cam and Grove Couplings to keep ferrule inventory low and flexible.
  • Interlock groove on fitting locks ferrule into place for the ultimate in holding power
  • Graduated serration pattern (sharper near the interlock, rounder near the end, with smooth end detail to reduce potential failures caused by abrasion) grips, seals and protects hose.
  • Shank and ferrule lengths are matched for performance and to avoid potential hose tube or cover damage.
  • Crimped assemblies are low profile and eliminate sharp edges from clamp buckles.
Recommended Hose Attachments:
  • Crimpnology Nipples provide an excellent fitting solution for medium-pressure applications such as "Frac Hose", mud pump hose, and other abusive applications
Part Number Hose Size
FS150SS-4 1"
FS150SS-6 1-1/2"
FS150SS-8 2"
FS150SS-10 2-1/2"
FS150SS-12 3"
FS150SS-16 4"
FS150SS-24 6"
FS150SS-32 8"

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
