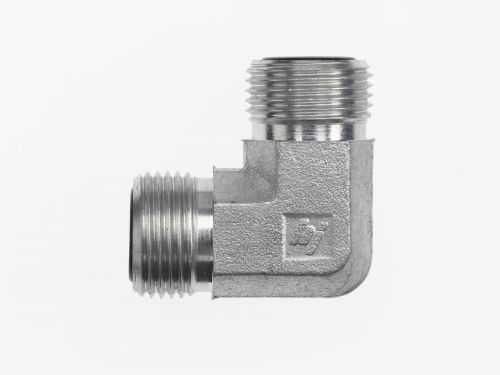

FS2500-06-06-FG by Brennan Inc. | -06 Male Face Seal x -06 Male Face Seal | 90° Elbow | Forged Steel

FS2500-06-06-FG by Brennan Inc. | -06 Male Face Seal x -06 Male Face Seal | 90° Elbow | Forged Steel

$3.78 - $3.78
$3.78
$4.80
$4.80 - $4.80
$4.80

Brennan Inc.
O-Ring Face Seal Fittings: FS2500 - Male Face Seal x Male Face Seal 90° Elbow
Specifications for Variant SKU: FS2500-06-06-FG Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Male O-Ring Face Seal, 3/8in Male O-Ring Face Seal, Some Ends Match
Material(s): Steel
Part Number Material A1 Tube O.D. A2 Tube O.D. A1 Thread A2 Thread A1 Drill A2 Drill M1Length M2Length JJFlats
FS2500-04-04-FG Forged Steel 1/4" 1/4" 9/16-18" 9/16-18" 0.172" 0.172" 0.850" 0.850" 0.562"
FS2500-06-06-FG Forged Steel 3/8" 3/8" 11/16-16" 11/16-16" 0.264" 0.264" 0.980" 0.980" 0.750"
FS2500-08-08-FG Forged Steel 1/2" 1/2" 13/16-16" 13/16-16" 0.378" 0.378" 1.100" 1.100" 0.750"
FS2500-10-10-FG Forged Steel 5/8" 5/8" 1-14" 1-14" 0.484" 0.484" 1.310" 1.310" 1.062"
FS2500-12-08-FG Forged Steel 3/4" 1/2" 1-3/16-12" 13/16-16" 0.609" 0.378" 1.470" 1.320" 1.188"
FS2500-12-12-FG Forged Steel 3/4" 3/4" 1-3/16-12" 1-3/16-12" 0.609" 0.609" 1.470" 1.470" 1.188"
FS2500-16-12-FG Forged Steel 1" 3/4" 1-7/16-12" 1-3/16-12" 0.811" 0.609" 1.640" 1.620" 1.438"
FS2500-16-16-FG Forged Steel 1" 1" 1-7/16-12" 1-7/16-12" 0.811" 0.811" 1.640" 1.640" 1.438"
FS2500-20-16-FG Forged Steel 1-1/4" 1" 1-11/16-12" 1-7/16-12" 1.024" 0.811" 1.760" 1.760" 1.625"
FS2500-24-20-FG Forged Steel 1-1/2" 1-1/4" 2-12" 1-11/16-12" 1.260" 1.024" 1.920" 1.920" 1.875"
FS2500-24-24-FG Forged Steel 1-1/2" 1-1/2" 2-12" 2-12" 1.260" 1.260" 1.920" 1.920" 1.875"

FS2500-12-12-SS Stainless Steel 3/4" 3/4" 1-3/16-12" 1-3/16-12" 0.609" 0.609" 1.470" 1.470" 1.188"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
