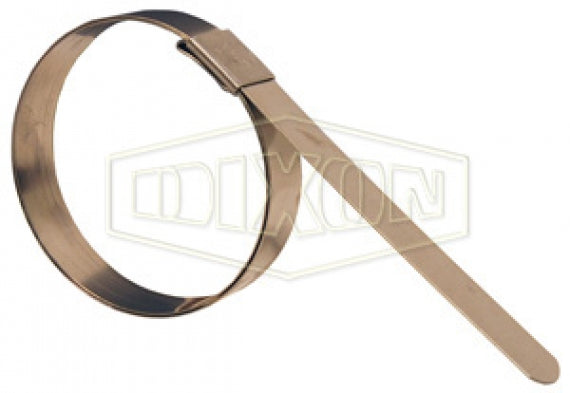

FS28 by Dixon Valve | F-Series | Pre-Formed Center Punch Band Clamp | 5/8" Band Width | 7" Clamp ID | 300 Stainless Steel Band | 302 Stainless Steel Buckle

FS28 by Dixon Valve | F-Series | Pre-Formed Center Punch Band Clamp | 5/8" Band Width | 7" Clamp ID | 300 Stainless Steel Band | 302 Stainless Steel Buckle | Box of 25

Save $15.71 Save $15.71
$141.38
$141.38 - $141.38
$141.38
$125.67
$125.67 - $125.67
$125.67

Dixon Valve
Pre-Formed Center Punch Band Clamps | F-Series


Package Quantity: 25 EA

Specifications for Variant SKU: FS28 Dixon | 25 |
Series: F-Series
Material(s): 300 Stainless Steel, 302 Stainless Steel
Clamp Thickness: 0.022
Clamp Width: 0.625
Maximum Clamp I.D.: 7
Installation Tools:
  • Install with center punch tools: F1 F38, F40, and F100.
  • Other manufacturers' punch style tools may also be used.
Materials:
  • On stainless clamps, bands are 300-series stainless steel, buckles are 302-series stainless steel.
Part Number Material Band Width Clamp ID Band Thickness
FS3 Stainless Steel 3/8" 13/16" .020"
FS311 Stainless Steel 3/8" 1-3/8" .020"
FS4 Stainless Steel 5/8" 1" .022"
FS5 Stainless Steel 5/8" 1-1/4" .022"
FS6 Stainless Steel 5/8" 1-1/2" .022"
FS7 Stainless Steel 5/8" 1-3/4" .022"
FS8 Stainless Steel 5/8" 2" .022"
FS9 Stainless Steel 5/8" 2-1/4" .022"
FS10 Stainless Steel 5/8" 2-1/2" .022"
FS11 Stainless Steel 5/8" 2-3/4" .022"
FS12 Stainless Steel 5/8" 3" .022"
FS14 Stainless Steel 5/8" 3-1/2" .022"
FS16 Stainless Steel 5/8" 4" .022"
FS18 Stainless Steel 5/8" 4-1/2" .022"
FS20 Stainless Steel 5/8" 5" .022"
FS24 Stainless Steel 5/8" 6" .022"
FS28 Stainless Steel 5/8" 7" .022"
FS32 Stainless Steel 5/8" 8" .022"

F3 Galvanized Steel 3/8" 13/16" .025"
F311 Galvanized Steel 3/8" 1-3/8" .025"
F4 Galvanized Steel 5/8" 1" .025"
F5 Galvanized Steel 5/8" 1-1/4" .025"
F6 Galvanized Steel 5/8" 1-1/2" .031"
F7 Galvanized Steel 5/8" 1-3/4" .031"
F8 Galvanized Steel 5/8" 2" .031"
F9 Galvanized Steel 5/8" 2-1/4" .031"
F10 Galvanized Steel 5/8" 2-1/2" .031"
F11 Galvanized Steel 5/8" 2-3/4" .031"
F12 Galvanized Steel 5/8" 3" .031"
F14 Galvanized Steel 5/8" 3-1/2" .031"
F16 Galvanized Steel 5/8" 4" .031"
F18 Galvanized Steel 5/8" 4-1/2" .031"
F20 Galvanized Steel 5/8" 5" .031"
F24 Galvanized Steel 5/8" 6" .031"
F28 Galvanized Steel 5/8" 7" .031"
F32 Galvanized Steel 5/8" 8" .031"
