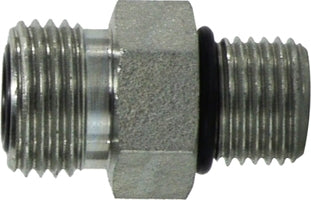

FS6400O1620 Midland Hydraulic Male ORSF to ORB Connector - 1-7/16-12 Male O-Ring Face Seal x 1-5/8-12 Male O-Ring Boss - Steel

FS6400O1620 by Midland | Hydraulic Male ORSF to ORB Connector | 1-7/16-12 Male O-Ring Face Seal x 1-5/8-12 Male O-Ring Boss | Steel

Save $10.95 Save $10.95
$27.38
$27.38 - $27.38
$27.38
$16.43
$16.43 - $16.43
$16.43

Midland Industries
Hydraulic Adapters: Male ORSF to ORB Connector - Steel
Specifications for Variant SKU: FS6400O1620 Midland
Shape (Orientation): Straight
Ends Configuration: 1in Male O-Ring Face Seal, 1-1/4in Male O-Ring Boss
Material(s): Steel
Applicable Specs & Approvals: Applicable SAE Standards
Specifications:
  • SAE 520120
Technical Info:
Crossover Series:
4315 FF6400 FF1231
Part Number Male O-Ring Face Seal Thread
(1)		 Male O-Ring Boss Thread
(2)
FS6400O44
(FS6400-O-44) 		9/16-18 7/16-20
FS6400O46
(FS6400-O-46) 		9/16-18 9/16-18
FS6400O64
(FS6400-O-64) 		11/16-16 7/16-20
FS6400O66
(FS6400-O-66) 		11/16-16 9/16-18
FS6400O68
(FS6400-O-68) 		11/16-16 3/4-16
FS6400O86
(FS6400-O-8-6) 		13/16-16 9/16-18
FS6400O88
 13/16-16 3/4-16
FS6400O810
 13/16-16 7/8-14
FS6400O108
(FS6400-O-10-8) 		1-14 3/4-16
FS6400O1010
(FS6400-O-10-10) 		1-14 7/8-14
FS6400O1012
(FS6400-O-10-12) 		1-14 1-1/16-12
FS6400O128
(FS6400-O-12-8) 		1-3/16-12 3/4-16
FS6400O1210
(FS6400-O-12-10) 		1-3/16-12 7/8-14
FS6400O1212
(FS6400-O-12-12) 		1-3/16-12 1-1/16-12
FS6400O1216
(FS6400-O-12-16) 		1-3/16-12 1-5/16-12
FS6400O1612
(FS6400-O-16-12) 		1-7/16-12 1-1/16-12
FS6400O1616
(FS6400-O-16-16) 		1-7/16-12 1-5/16-12
FS6400O1620
 1-7/16-12 1-5/8-12
FS6400O2020
(FS6400-O-20-20) 		1-11/16-12 1-5/8-12
FS6400O2024
 1-11/16-12 1-7/8-12
FS6400O2424
(FS6400-O-24-24) 		2-12 1-7/8-12
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
