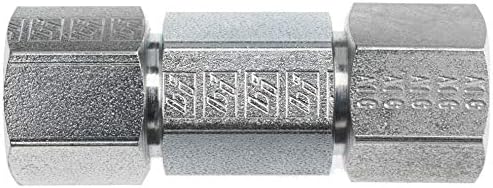

FS6565-16-16 by Brennan Inc. | -16 Female Face Seal Swivel x -16 Female Face Seal Swivel | Straight | Steel

Name: FS6565-16-16 by Brennan Inc. | -16 Female Face Seal Swivel x -16 Female Face Seal Swivel | Straight | Steel
Brand: Brennan Inc
SKU: FS6565-16-16 Brennan
Price: 30.75 USD
Availability: InStock

$24.22 - $24.22

$24.22

$30.75

$30.75 - $30.75

$30.75

Brennan Inc.
O-Ring Face Seal Fittings: FS6565 - Female Face Seal Swivel x Female Face Seal Swivel Straight

Quantity

Specifications for Variant SKU: FS6565-16-16 Brennan
Shape (Orientation):	Straight
Ends Configuration:	1in Female O-Ring Face Seal, 1in Female O-Ring Face Seal, Some Ends Match
Material(s):	Steel
Special Properties:	Swivel


Part Number	Material	TubeO.D	AThread	BThread	ADrill	BDrill	lLength	CHex	HHex
FS6565-04-04	Steel	1/4"	9/16-18"	9/16-18"	0.165"	0.165"	1.590"	0.687"	0.625"
FS6565-06-06	Steel	3/8"	11/16-16"	11/16-16"	0.264"	0.264"	1.770"	0.812"	0.750"
FS6565-08-08	Steel	1/2"	13/16-16"	13/16-16"	0.358"	0.358"	2.120"	0.938"	0.875"
FS6565-10-10	Steel	5/8"	1-14"	1-14"	0.453"	0.453"	2.420"	1.125"	1.062"
FS6565-12-12	Steel	3/4"	1-3/16-12"	1-3/16-12"	0.547"	0.547"	2.740"	1.375"	1.250"
FS6565-16-16	Steel	1"	1-7/16-12"	1-7/16-12"	0.783"	0.783"	2.950"	1.625"	1.500"

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
