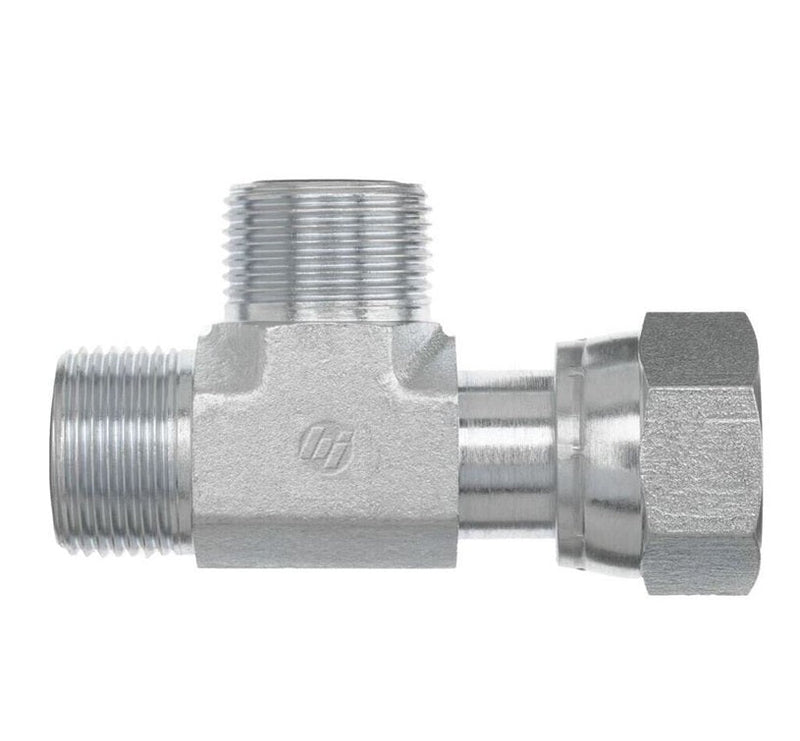

FS6602-06-06-08-FG by Brennan Inc. | -06 Male Face Seal x -06 Female Face Seal Swivel x -08 Male Face Seal Run | Tee | Forged Steel

FS6602-06-06-08-FG by Brennan Inc. | -06 Male Face Seal x -06 Female Face Seal Swivel x -08 Male Face Seal Run | Tee | Forged Steel

Save $11.03 Save $11.03
$27.58
$27.58 - $27.58
$27.58
$16.55
$16.55 - $16.55
$16.55

Brennan Inc.
O-Ring Face Seal Fittings: FS6602 - Male Face Seal x Female Face Seal Swivel x Male Face Seal Run Tee
Specifications for Variant SKU: FS6602-06-06-08-FG Brennan
Shape (Orientation): Tee
Ends Configuration: 3/8in Male O-Ring Face Seal, 3/8in Female O-Ring Face Seal, 1/2in Male O-Ring Face Seal, Some Ends Match
Material(s): Steel
Special Properties: Swivel
Part Number Material TubeO.D A1Thread BThread A2Thread A1Drill BDrill A2Drill M1Length AAALength M2Length CHex JJFlats
FS6602-04-04-04-FG Steel 1/4" 9/16-18" 9/16-18" 9/16-18" 0.172" 0.165" 0.172" 0.850" 1.04" 0.850" 0.687" 0.562"
FS6602-06-06-06-FG Steel 3/8" 11/16-16" 11/16-16" 11/16-16" 0.264" 0.264" 0.264" 0.980" 1.150" 0.980" 0.812" 0.750"
FS6602-06-06-08-FG Steel - - - - - - - - - - - -
FS6602-06-08-08-FG Steel 1/2" 11/16-16" 13/16-16" 13/16-16" 0.264" 0.264" 0.378" 1.040" 1.490" 1.100" 0.938" 0.750"
FS6602-08-08-06-FG Steel 1/2" 13/16-16" 13/16-16" 11/16-16" 0.378" 0.358" 0.264" 1.100" 1.490" 1.040" 0.938" 0.750"
FS6602-08-08-08-FG Steel 1/2" 13/16-16" 13/16-16" 13/16-16" 0.378" 0.358" 0.378" 1.100" 1.490" 1.100" 0.938" 0.750"
FS6602-10-10-10-FG Steel 5/8" 1-14" 1-14" 1-14" 0.453" 0.453" 0.484" 1.310" 1.620" 1.310" 1.125" 1.062"
FS6602-12-12-12-FG Steel 3/4" 1-3/16-12" 1-3/16-12" 1-3/16-12" 0.609" 0.547" 0.609" 1.470" 1.820" 1.470" 1.375" 1.188"
FS6602-16-16-06-FG Steel - - - - - - - - - - - -
FS6602-16-16-16-FG Steel 1" 1-7/16-12" 1-7/16-12" 1-7/16-12" 0.811" 0.783" 0.811" 1.640" 2.100" 1.640" 1.625" 1.438"
FS6602-20-20-20-FG Steel 1-1/4" 1-11/16-12" 1-11/16-12" 1-11/16-12" 1.024" 1.024" 1.024" 1.760" 2.290" 1.760" 1.875" 1.625"
FS6602-24-24-24-FG Steel 1-1/2" 2-12" 2-12" 2-12" 1.260" 1.260" 1.260" 1.920" 2.410" 1.920" 2.250" 1.875"

FS6602-06-06-06-SS Stainless Steel 3/8" 11/16-16" 11/16-16" 11/16-16" 0.264" 0.264" 0.264" 0.98" 1.15" 0.98" 0.812" 0.750"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
