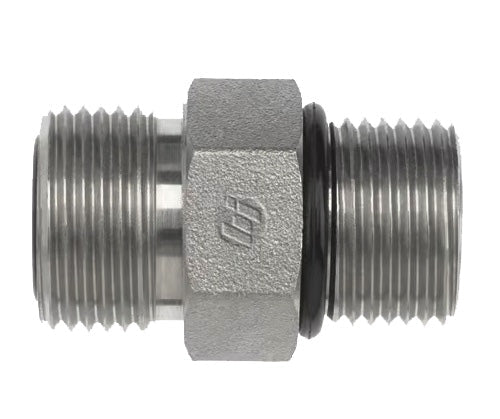

FS7002-06-06 by Brennan Inc. | -06 Male Face Seal x -06 Male BSPP | Straight | Steel

FS7002-06-06 by Brennan Inc. | -06 Male Face Seal x -06 Male BSPP | Straight | Steel

$4.51 - $4.51
$4.51
$5.73
$5.73 - $5.73
$5.73

Brennan Inc.
O-Ring Face Seal Fittings: FS7002 - Male Face Seal x Male BSPP Straight
Specifications for Variant SKU: FS7002-06-06 Brennan
Shape (Orientation): Straight
Ends Configuration: 3/8in Male O-Ring Face Seal, 3/8in Male BSPP
Material(s): Steel
Part Number Material Tube
O.D		 A
Thread		 B
BSPP		 A
Drill		 B
Drill		 L
Length		 H
Hex
FS7002-04-02 Steel - - - - - - -
FS7002-04-04 Steel 1/4" 9/16-18" 1/4-19" 4.37mm 4.40mm 30.00mm 19.00mm
FS7002-04-06 Steel - - - - - - -
FS7002-06-04 Steel - - - - - - -
FS7002-06-06 Steel 3/8" 11/16-16" 3/8-19" 6.71mm 7.50mm 33.00mm 22.00mm
FS7002-06-08 Steel 3/8" 11/16-16" 1/2-14" 6.71mm 11.10mm 37.50mm 27.00mm
FS7002-08-04 Steel 1/2" 13/16-16" 1/4-19" 9.60mm 4.70mm 36.40mm 22.00mm
FS7002-08-06 Steel - - - - - - -
FS7002-08-08 Steel 1/2" 13/16-16" 1/2-14" 9.60mm 11.10mm 39.00mm 27.00mm
FS7002-08-12 Steel 1/2" 13/16-16" 3/4-14" 9.60mm 16.70mm 45.00mm 32.00mm
FS7002-10-08 Steel - - - - - - -
FS7002-10-12 Steel 5/8" 1-14" 3/4-14" 12.29mm 16.70mm 47.70mm 32.00mm
FS7002-12-08 Steel 3/4" 1-3/16-12" 1/2-14" 15.47mm 11.10mm 48.50mm 32.00mm
FS7002-12-12 Steel 3/4" 1-3/16-12" 3/4-14" 15.47mm 16.70mm 50.00mm 32.00mm
FS7002-12-16 Steel - - - - - - -
FS7002-16-12 Steel 1" 1-7/16-12" 3/4-14" 20.60mm 16.70mm 50.30mm 38.00mm
FS7002-16-16 Steel - - - - - - -
FS7002-16-20 Steel 1" 1-7/16-12" 1-1/4-11" 20.60mm 28.60mm 53.80mm 50.00mm
FS7002-20-16 Steel 1-1/4" 1-11/16-12" 1-11" 26.00mm 22.20mm 53.80mm 47.00mm
FS7002-20-20 Steel 1-1/4" 1-11/16-12" 1-1/4-11" 26.00mm 28.60mm 53.80mm 50.00mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
