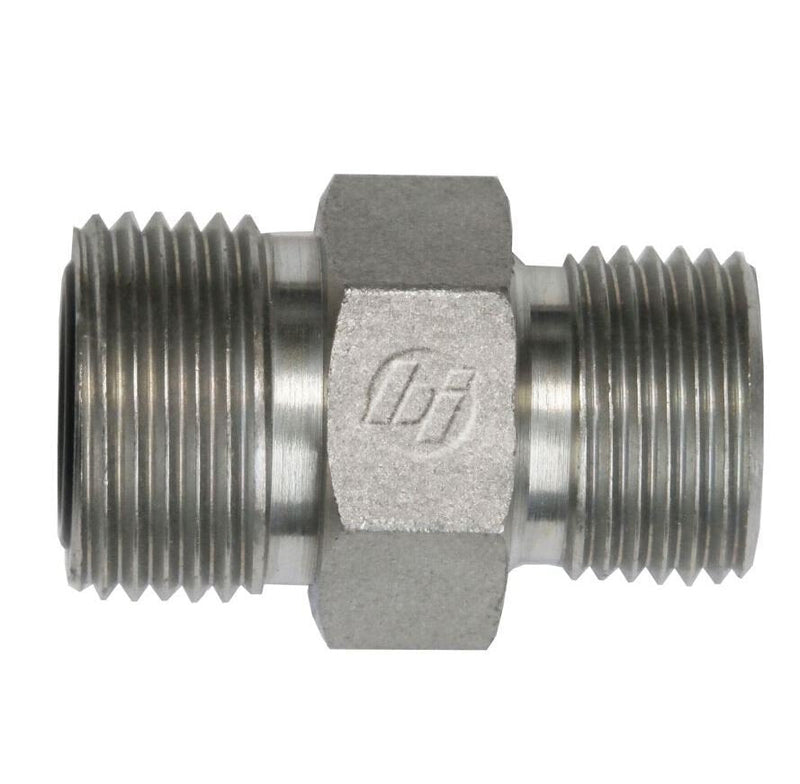

FS7005-04-10 by Brennan Inc. | -04 Male Face Seal x 10mm Male Metric | Straight | Steel

FS7005-04-10 by Brennan Inc. | -04 Male Face Seal x 10mm Male Metric | Straight | Steel

Save $5.31 Save $5.31
$13.28
$13.28 - $13.28
$13.28
$7.97
$7.97 - $7.97
$7.97

Brennan Inc.
O-Ring Face Seal Fittings: FS7005 - Male Face Seal x Male Metric Straight
Specifications for Variant SKU: FS7005-04-10 Brennan
Shape (Orientation): Straight
Ends Configuration: 1/4in Male O-Ring Face Seal, 10mm Male Metric
Material(s): Steel
Part Number Material TubeO.D AThread BThread ADrill BDrill LLength HHex
FS7005-04-10 Steel 1/4" 9/16-18" M10X1.0" 4.37mm 4.40mm 31.5mm 17.0mm
FS7005-08-18 Steel 1/2" 13/16-16" M18X1.5" 9.60mm 9.00mm 35.60mm 22.00mm

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
