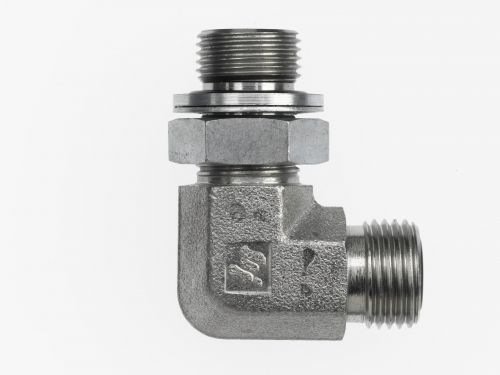

FS7202-24-24-NWO-FG by Brennan Inc. | -24 Male Face Seal x -24 Male BSPP | 90° Elbow | Forged Steel

FS7202-24-24-NWO-FG by Brennan Inc. | -24 Male Face Seal x -24 Male BSPP | 90° Elbow | Forged Steel

Save $10.36 Save $10.36
$93.23
$93.23 - $93.23
$93.23
$82.87
$82.87 - $82.87
$82.87

Brennan Inc.
O-Ring Face Seal Fittings: FS7202-NWO - Male Face Seal x Male BSPP 90° Elbow
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FS7202-24-24-NWO-FG Brennan
Shape (Orientation): 90 Degree
Material(s): Steel
Part Number Material TubeO.D AThread BThread ADrill BDrill MLength NLength C4Hex JJHex
FS7202-04-02-NWO-FG Steel 1/4" 9/16-18" 1/8-28" 4.40mm 4.40mm 21.5mm 30.0mm 14.0mm 14.0mm
FS7202-04-04-NWO-FG Steel 1/4" 9/16-18" 1/4-19" 4.40mm 7.50mm 23.5mm 36.0mm 19.0mm 19.0mm
FS7202-04-06-NWO-FG Steel 1/4" 9/16-18" 3/8-19" 4.40mm 9.90mm 24.7mm 38.0mm 22.0mm 19.0mm
FS7202-06-04-NWO-FG Steel 3/8" 11/16-16" 1/4-19" 6.70mm 7.50mm 25.0mm 36.0mm 19.0mm 19.0mm
FS7202-06-06-NWO-FG Steel 3/8" 11/16-18" 3/8-19" 6.70mm 9.90mm 26.5mm 38.0mm 22.0mm 19.0mm
FS7202-08-04-NWO-FG Steel 1/2" 13/16-16" 1/4-19" 9.60mm 6.07mm 27.93mm 36.07mm 19.0mm 19.0mm
FS7202-08-06-NWO-FG Steel 1/2" 13/16-16" 3/8-19" 9.60mm 9.90mm 28.0mm 38.0mm 22.0mm 19.0mm
FS7202-08-08-NWO-FG Steel 1/2" 13/16-16" 1/2-14" 9.60mm 12.30mm 30.8mm 48.5mm 27.0mm 27.0mm
FS7202-08-12-NWO-FG Steel 1/2" 13/16-16" 3/4-14" 9.60mm 15.5mm 33.5mm 51.5mm 36.0mm 30.0mm
FS7202-10-08-NWO-FG Steel 5/8" 1-14" 1/2-14" 12.3mm 12.3mm 33.3mm 48.5mm 27.0mm 27.0mm
FS7202-10-12-NWO-FG Steel 5/8" 1-14" 3/4-14" 12.3mm 15.5mm 35.8mm 51.5mm 36.0mm 30.0mm
FS7202-12-08-NWO-FG Steel 3/4" 1-3/16-12" 1/2-14" 15.5mm 12.3mm 37.3mm 48.5mm 27.0mm 27.0mm
FS7202-12-12-NWO-FG Steel 3/4" 1-3/16-12" 3/4-14" 15.47mm 15.5mm 37.5mm 51.5mm 36.0mm 30.0mm
FS7202-12-16-NWO-FG Steel 3/4" 1-3/16-12" 1-11" 15.5mm 21.5mm 41.2mm 58.5mm 41.0mm 36.0mm
FS7202-16-12-NWO-FG Steel 1" 1-7/16-12" 3/4-14" 20.6mm 15.5mm 41.7mm 55.2mm 36.0mm 36.0mm
FS7202-16-16-NWO-FG Steel 1" 1-7/16-12" 1-11" 20.6mm 21.5mm 41.7mm 58.5mm 41.0mm 36.0mm
FS7202-16-20-NWO-FG Steel 1" 1-7/16-12" 1-1/4-11" 20.6mm 27.5mm 44.5mm 61.0mm 50.0mm 41.0mm
FS7202-20-16-NWO-FG Steel 1-1/4" 1-11/16-12" 1-11" 26.0mm 20.6mm 44.7mm 62.0mm 41.3mm 41.3mm
FS7202-20-24-NWO-FG Steel 1-1/4" 1-11/16-12" 1-1/2-11" 26.0mm 33.0mm 48.8mm 65.8mm 55.0mm 50.0mm
FS7202-24-24-NWO-FG Steel 1-1/2" 2-12" 1-1/2-11" 32.0mm 33.0mm 48.8mm 65.8mm 55.0mm 50.0mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
