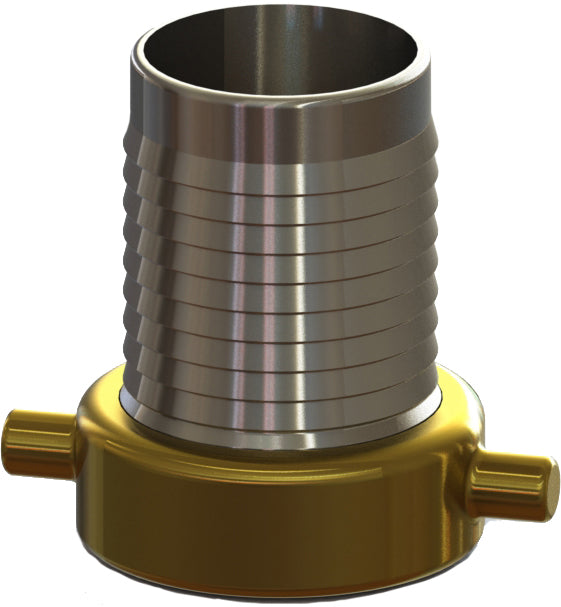

FSB-10 by Campbell Fittings | Suction Hose Coupling | Female Shank | 2-1/2" Female NPSM Thread x 2-1/2" Hose Shank | Nut: Brass | Plated Steel Shank

FSB-10 by Campbell Fittings | Suction Hose Coupling | Female Shank | 2-1/2" Female NPSM Thread x 2-1/2" Hose Shank | Nut: Brass | Plated Steel Shank

Save $21.89 Save $21.89
$54.73
$54.73 - $54.73
$54.73
$32.84
$32.84 - $32.84
$32.84

by Campbell
Suction Hose Couplings:FSB Female Shank
Specifications for Variant SKU: FSB-10 Campbell Fittings
Series: FSB Series
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Female NPSM, 2-1/2in Hose Barb
Material(s): Plated Steel, Brass
Recommended Use:
  • Liquid, bulk handling
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands Clamps
Features and Benefits:
  • Maximum number of serrations for maximum holding power
  • Long lead serration for easier hose insertion
  • Suction Couplings machined from pipe eliminate porosity and parting lines, improving sealing and retention.
Part Number Hose Size
FSB-5 1-1/4"
FSB-6 1-1/2"
FSB-8 2"
FSB-10 2-1/2"
FSB-12 3"
FSB-16 4"
FSB-24 6"
Campbell Fittings

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
