FSX45-04-04-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/4" SAE 45° Flare Swivel | 45° Elbow | Carbon Steel

Name: FSX45-04-04-K2 by Kurt Hydraulic | K2 Series | 1/4" Hose Barb x 1/4" SAE 45° Flare Swivel | 45° Elbow | Carbon Steel
Brand: Kurt Hydraulics
SKU: FSX45-04-04-K2 Kurt
Price: 31.05 USD
Availability: InStock

Save $20.70

$51.75

$51.75 - $51.75

$51.75

$31.05

$31.05 - $31.05

$31.05

Kurt Hydraulics
FSX45 - 45° SAE Female 45° Bent Tube Swivel

Specifications for Variant SKU: FSX45-04-04-K2 Kurt
Series:	K2 Series
Shape (Orientation):	45 Degree
Ends Configuration:	1/4in Hose Barb x 1/4in SAE 45 Flare
Material(s):	Carbon Steel
Special Properties:	Swivel

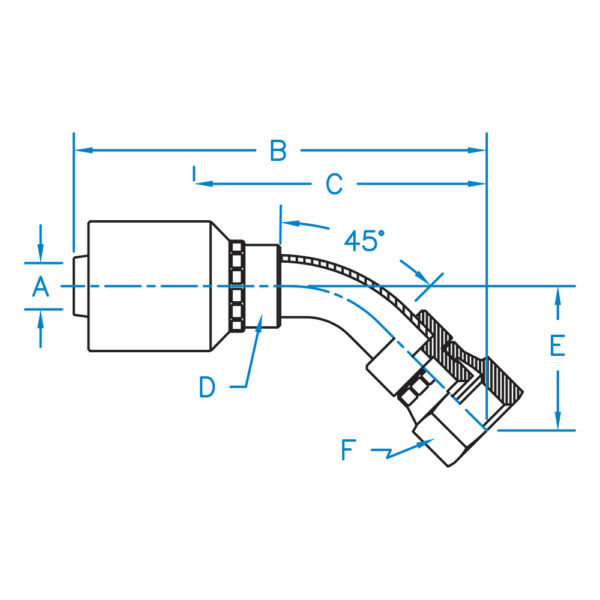

Part Number	Hose I.D. (in.)	B	C	D	E	F	Thread
FSX45-04-04-K2	1/4"	2.86"	1.80"	5/8"	0.39"	9/16"	7/16 – 20
FSX45-04-05-K2	1/4"	2.89"	1.83"	5/8"	0.39"	5/8"	1/2 – 20
FSX45-06-05-K2	3/8"	3.22"	1.85"	11/16"	0.39"	5/8"	1/2 – 20
FSX45-06-06-K2	3/8"	3.26"	1.89"	11/16"	0.43"	3/4"	5/8 – 18
FSX45-08-08-K2	1/2"	3.65"	2.31"	7/8"	0.59"	15/16"	3/4 – 16
FSX45-08-10-K2	1/2"	3.30"	1.96"	7/8"	0.63"	1-1/16"	7/8 – 14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
