FSX45-08-10-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 5/8" SAE 45° Flare Swivel | 45° Elbow | Carbon Steel

FSX45-08-10-K2 by Kurt Hydraulic | K2 Series | 1/2" Hose Barb x 5/8" SAE 45° Flare Swivel | 45° Elbow | Carbon Steel

Save $31.41 Save $31.41
$78.52
$78.52 - $78.52
$78.52
$47.11
$47.11 - $47.11
$47.11

Kurt Hydraulics
FSX45 - 45° SAE Female 45° Bent Tube Swivel
Specifications for Variant SKU: FSX45-08-10-K2 Kurt
Series: K2 Series
Shape (Orientation): 45 Degree
Ends Configuration: 1/2in Hose Barb x 5/8in SAE 45 Flare
Material(s): Carbon Steel
Special Properties: Swivel

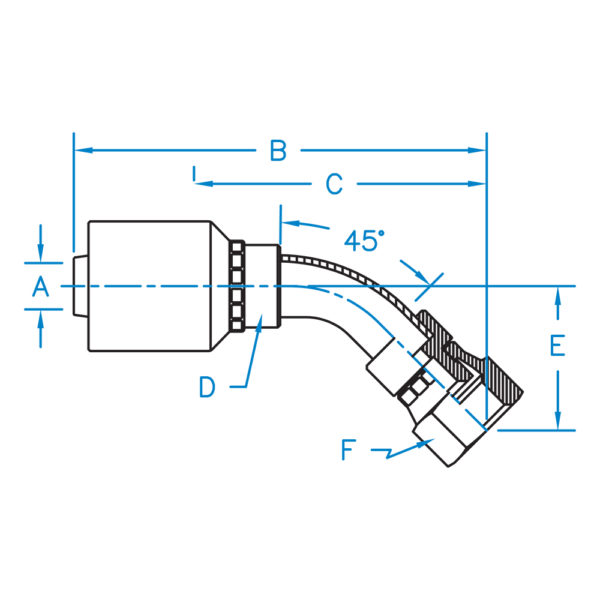

Part Number Hose I.D. (in.) B C D E F Thread
FSX45-04-04-K2 1/4" 2.86" 1.80" 5/8" 0.39" 9/16" 7/16 – 20
FSX45-04-05-K2 1/4" 2.89" 1.83" 5/8" 0.39" 5/8" 1/2 – 20
FSX45-06-05-K2 3/8" 3.22" 1.85" 11/16" 0.39" 5/8" 1/2 – 20
FSX45-06-06-K2 3/8" 3.26" 1.89" 11/16" 0.43" 3/4" 5/8 – 18
FSX45-08-08-K2 1/2" 3.65" 2.31" 7/8" 0.59" 15/16" 3/4 – 16
FSX45-08-10-K2 1/2" 3.30" 1.96" 7/8" 0.63" 1-1/16" 7/8 – 14

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
