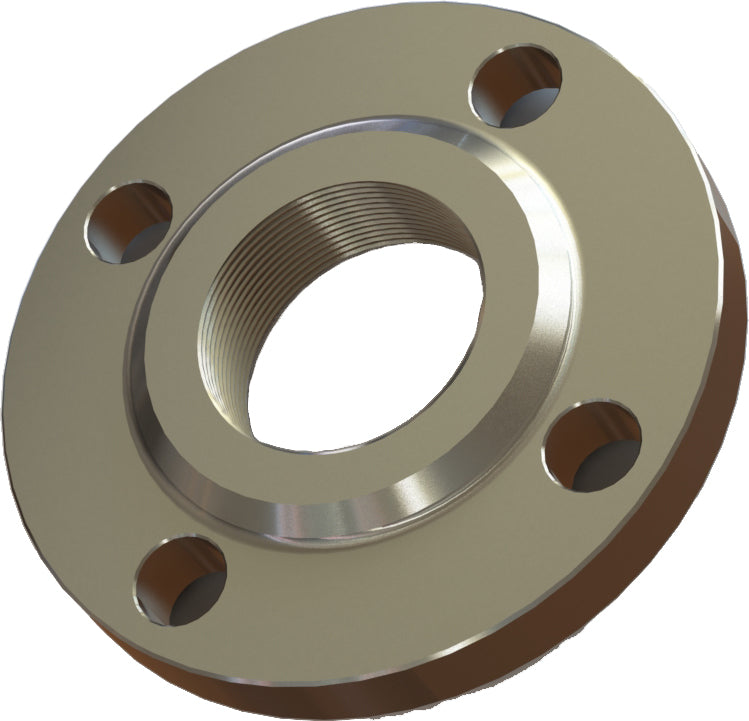

FT150S-6 by Campbell Fittings | Threaded Flange | 1-1/2" 150# Flange x 1-1/2" Female NPT | Steel

FT150S-6 by Campbell Fittings | Threaded Flange | 1-1/2" 150# Flange x 1-1/2" Female NPT | Steel

Save $32.04 Save $32.04
$80.10
$80.10 - $80.10
$80.10
$48.06
$48.06 - $48.06
$48.06

by Campbell
Crimpnology Nipple:FT150S Flange-Threaded (150lb.)
Specifications for Variant SKU: FT150S-6 Campbell Fittings
Series: FT150S Series
Ends Configuration: 1-1/2in 150# Flange, 1-1/2in Female NPT
Material(s): Steel
Recommended Use:
  • Multi-purpose fluid, chemical, bulk handling
Recommended Hose Attachments:
  • Interlocking ferrules
Features and Benefits:
  • Designed for use with Campbell Interlocking Ferrules.
  • Fittings use the same ferrules as Campbell COBRA Parts C and E, Chemjoint Couplings, and Goodyear InstaLock Cam and Grove Couplings to keep ferrule inventory low and flexible.
  • Interlock groove on fitting locks ferrule into place for the ultimate in holding power
  • Graduated serration pattern (sharper near the interlock, rounder near the end, with smooth end detail to reduce potential failures caused by abrasion) grips, seals and protects hose.
  • Shank and ferrule lengths are matched for performance and to avoid potential hose tube or cover damage.
  • Crimped assemblies are low profile and eliminate sharp edges from clamp buckles.
Recommended Hose Attachments:
  • Crimpnology Nipples provide an excellent fitting solution for medium-pressure applications such as "Frac Hose", mud pump hose, and other abusive applications
Part Number Hose Size
FT150S-6 1-1/2"
FT150S-8 2"
FT150S-10 2-1/2"
FT150S-12 3"
FT150S-16 4"
FT150S-24 6"
FT150S-32 8"
