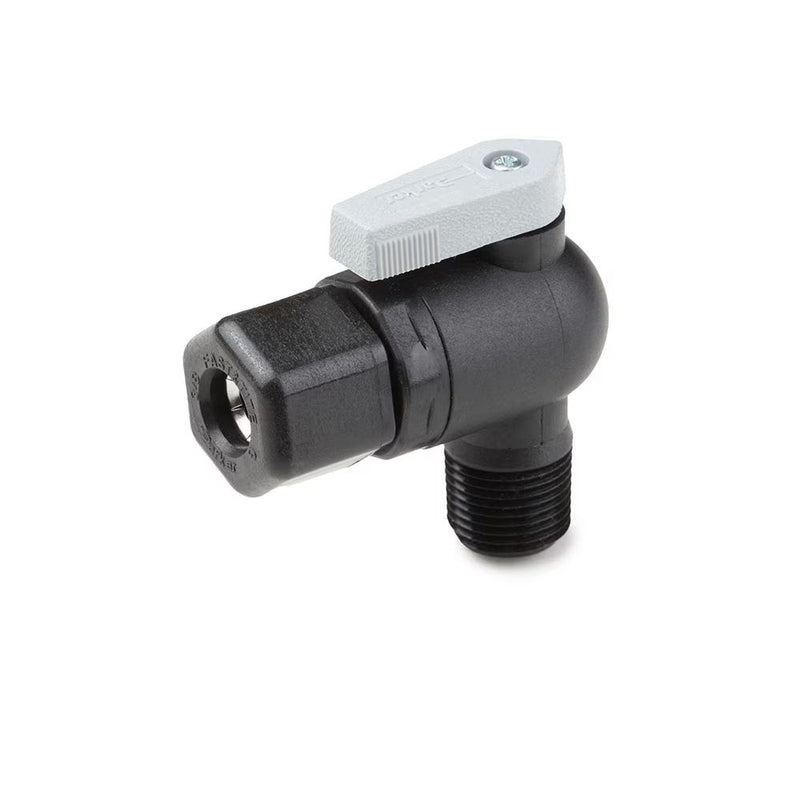

FTPPB6VME4 by Parker | Ball Valve | 3/8" Tube Size x 1/4" Male NPTF Thread | 2.26" Length | 90° Elbow | Black | Polypropylene

FTPPB6VME4 by Parker | Ball Valve | 3/8" Tube Size x 1/4" Male NPTF Thread | 2.26" Length | 90° Elbow | Black | Polypropylene

Save $4.25 Save $4.25
$10.62
$10.62 - $10.62
$10.62
$6.37
$6.37 - $6.37
$6.37

by Parker Hannifin
Ball Valves Polypropylene:Valve Male Elbow
Specifications for Variant SKU: FTPPB6VME4 Parker
Brand: Fast & Tite®
Series: VME Series
Shape (Orientation): 90° Elbow
Material(s): Polypropylene
Seal Material(s): EPDM
Product Features:
  • Wide chemical acceptance range
  • Bi-directional flow maximizes productivity
  • Full flow reduces pressure drop across valve
  • EPDM Seals – LIQUIfit, TrueSeal, and Par-barb
  • Nitrile Seals – Fast and Tite
  • Push-in and barbed connections
  • Meets FDA and NSF/ANSI 51 requirements for food contact
  • LIQUIfit, Par-Barb, and TrueSeal meet NSF/ANSI 61 requirements
Advantages:
  • Reduce costs – Built in LIQUIfit, TrueSeal and Par-Barb connections eliminates the need for a secondary fitting.
  • Save Space – Low-profile design allows for easy assembly and access where space is a concern.
Type:
  • LFPP – LIQUIfit
  • PP – TrueSeal
  • PBPP – Par-Barb
  • FTPPB - Fast and Tite
Specification:
Temperature Range: 35° to +200° F (+1.7° to +93.3° C)
Pressure Range:
  • Up to 150 PSI (10.3 bar)
Part Number Tube Size 1 NPTF Thread Size A B C D ØE Thru Hole Min
FTPPB4VME4 1/4" 1/4" 2.14" 1.61" 2.21" 1.28" .19"
FTPPB6VME4 3/8" 1/4" 2.26" 1.73" 2.21" 1.28" .19"
FTPPB6VME6 3/8" 3/8" 2.26" 1.73" 2.21" 1.28" .25"
FTPPB8VME8 1/2" 1/2" 2.34" 1.80" 2.40" 1.47" .38"
