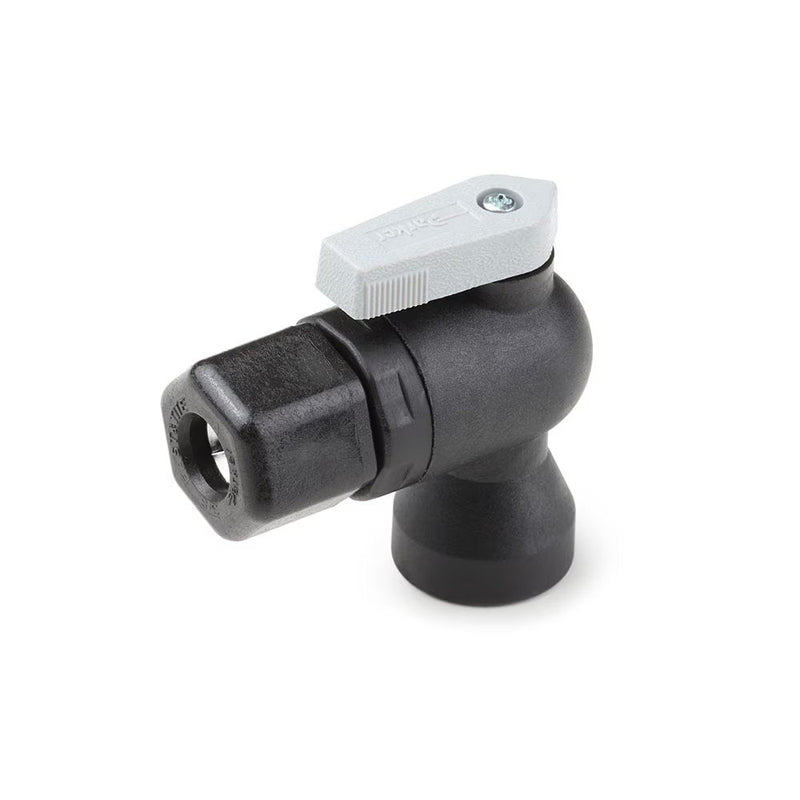

FTPPB8VFE6 by Parker | Ball Valve | 1/2" Tube Size x 3/8" Female NPTF Thread | 2.34" Length | 90° Elbow | Black | Polypropylene

FTPPB8VFE6 by Parker | Ball Valve | 1/2" Tube Size x 3/8" Female NPTF Thread | 2.34" Length | 90° Elbow | Black | Polypropylene

Save $4.58 Save $4.58
$11.45
$11.45 - $11.45
$11.45
$6.87
$6.87 - $6.87
$6.87

by Parker Hannifin
Ball Valves Polypropylene:Valve Female Elbow
Specifications for Variant SKU: FTPPB8VFE6 Parker
Brand: Fast & Tite®
Series: VFE Series
Shape (Orientation): 90° Elbow
Material(s): Polypropylene
Seal Material(s): EPDM
Product Features:
  • Wide chemical acceptance range
  • Bi-directional flow maximizes productivity
  • Full flow reduces pressure drop across valve
  • EPDM Seals – LIQUIfit, TrueSeal, and Par-barb
  • Nitrile Seals – Fast and Tite
  • Push-in and barbed connections
  • Meets FDA and NSF/ANSI 51 requirements for food contact
  • LIQUIfit, Par-Barb, and TrueSeal meet NSF/ANSI 61 requirements
Advantages:
  • Reduce costs – Built in LIQUIfit, TrueSeal and Par-Barb connections eliminates the need for a secondary fitting.
  • Save Space – Low-profile design allows for easy assembly and access where space is a concern.
Type:
  • LFPP – LIQUIfit
  • PP – TrueSeal
  • PBPP – Par-Barb
  • FTPPB - Fast and Tite
Specification:
Temperature Range: 35° to +200° F (+1.7° to +93.3° C)
Pressure Range:
  • Up to 150 PSI (10.3 bar)
Part Number Tube Size 1 NPTF Thread Size A B C D ØE Thru Hole Min
FTPPB4VFE4 1/4" 1/4" 2.14" 1.61" 2.18" 1.25" .19"
FTPPB6VFE4 3/8" 1/4" 2.26" 1.73" 2.18" 1.25" .19"
FTPPB6VFE6 3/8" 3/8" 2.26" 1.73" 2.21" 1.28" .25"
FTPPB8VFE6 1/2" 3/8" 2.34" 1.80" 2.21" 1.28" .25"
