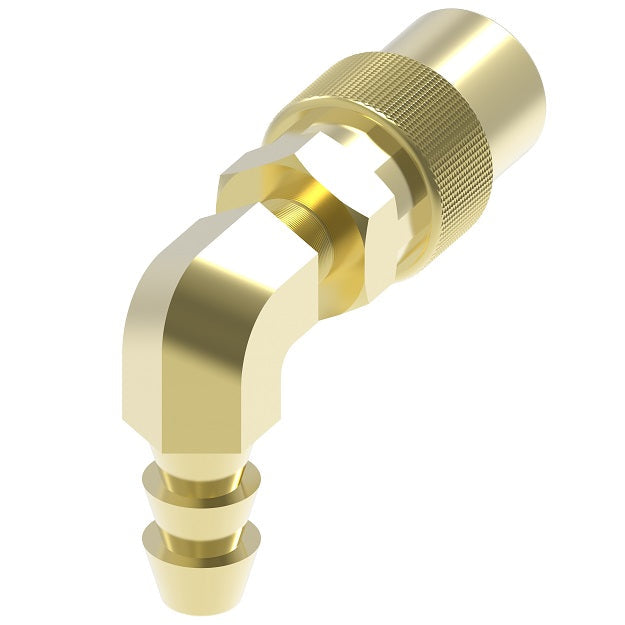

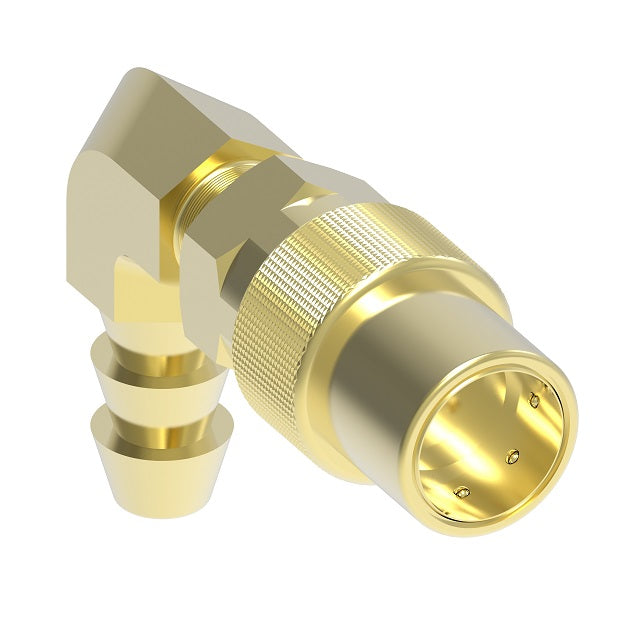

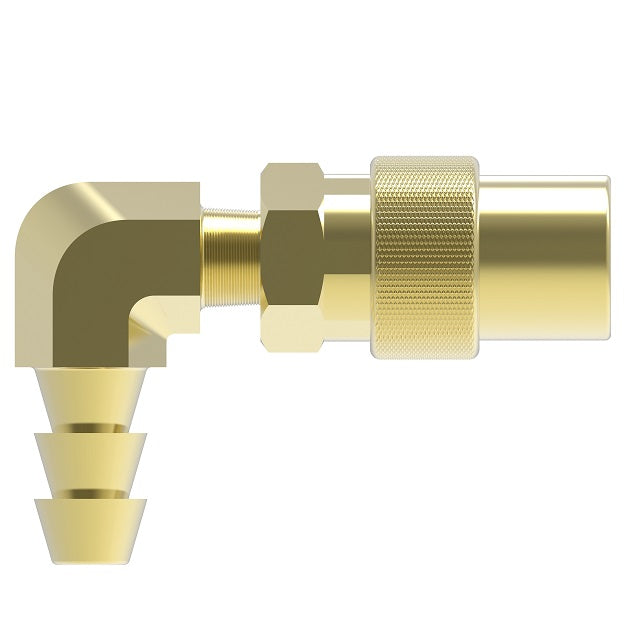

FTS216 Hansen by Danfoss | Thermal Management Quick Disconnect Coupling | Flo-Temp Series | Hose Barb | 90° Elbow | 3/8" Hose ID x 1/4" Body Size | Socket | Non-Valved | Buna-N Seal | Brass

$15.12 - $15.12

$15.12

$15.12 - $15.12

$15.12

Hansen® by Danfoss
Quick Disconnect Coupling | Flo-Temp Series

Quick Disconnect for Thermal Management Applications.

Danfoss' Flo-Temp™ quick disconnect couplings provide the flow needed to cool or heat molds and die casting dies. Sockets are available non-valved for maximum flow and valved to prevent fluid loss when disconnected.

Flo-Temp couplings can be used with water-glycol, hot water and hot oil.

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FTS216 Danfoss
Brand:	Hansen
Series:	Flo-Temp Series
Shape (Orientation):	90 Degree
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Valved

Features:	Non valved straight through models for maximum flow. Valved sockets/females for automatic shut-off when line is disconnected. Brass plugs/males with male pipe thread for recessed mounting to avoid damage to plugs/males when molds are being changed or stored.
Applications & Markets:	Injection Molding Heating and Cooling
Materials:	Standard body material: Brass

Size	Max. Operating Pressure		Min. Burst Pressure		Rated Flow
1/4"	14 bar	200 psi	56 bar	800 psi	8.3 lpm	2.2 gpm
3/8"	14 bar	200 psi	56 bar	800 psi	17 lpm	4.5 gpm
1/2"	14 bar	200 psi	56 bar	800 psi	49 lpm	13 gpm


Female/Socket (Figure 1)
Flo-Temp Series \| 90° Elbow \| Hose Stem
Non-Valved Part Number	Valved Part Number	Coupling Type	Body Size	Type	Hose ID	Figure	Dimensions
Non-Valved Part Number	Valved Part Number	Coupling Type	Body Size	Type	Hose ID	Figure	A	B	C
FTS214	-	Socket/Female	1/4"	Hose Stem	1/4"	1	1.36" (34.5mm)	0.67" (17.0mm)	2.17" (55.1mm)
FTS214HP	-	Socket/Female	1/4"	Push-On Hose Stem	1/4"	1	1.18" (30.0mm)	0.67" (17.0mm)	1.76" (44.7mm)
FTS215	-	Socket/Female	1/4"	Hose Stem	5/16"	1	1.18" (30.0mm)	0.67" (17.0mm)	1.76" (44.7mm)
FTS216	-	Socket/Female	1/4"	Hose Stem	3/8"	1	1.17" (29.7mm)	0.67" (17.0mm)	1.76" (44.7mm)
FTS216HP	-	Socket/Female	1/4"	Push-On Hose Stem	3/8"	1	1.17" (29.7mm)	0.67" (17.0mm)	1.76" (44.7mm)
FTS316	-	Socket/Female	3/8"	Hose Stem	3/8"	1	1.60" (40.6mm)	0.88" (22.4mm)	2.43" (61.7mm)
FTS316HP	-	Socket/Female	3/8"	Push-On Hose Stem	3/8"	1	1.60" (40.6mm)	0.88" (22.4mm)	2.43" (61.7mm)
FTS318	FTS318V	Socket/Female	3/8"	Hose Stem	1/2"	1	1.60" (40.6mm)	0.88" (22.4mm)	2.43" (61.7mm)
FTS318HP	-	Socket/Female	3/8"	Push-On Hose Stem	1/2"	1	1.60" (40.6mm)	0.88" (22.4mm)	2.43" (61.7mm)


Male/Plug (Figure 2)
Flo-Temp Series \| Male Thread
Part Number	Coupling Type	Body Size	Port Size	Thread	Type	Figure	Dimensions			Installation Recess
Part Number	Coupling Type	Body Size	Port Size	Thread	Type	Figure	A	B	C	DIA	Depth
FTP251	Plug/Male	1/4"	1/8"	1/8-27	Male NPTF	2	0.94" (23.9mm)	0.49" (12.4mm)	0.44" (11.2mm)	0.69" (17.5mm)	0.69" (17.5mm)
FTP251BST	Plug/Male	1/4"	1/8"	1/8-28	Male BSPT	2	0.94" (23.9mm)	0.49" (12.4mm)	0.44" (11.2mm)	0.69" (17.5mm)	0.69" (17.5mm)
FTP252	Plug/Male	1/4"	1/4"	1/4-18	Male NPTF	2	1.15" (29.2mm)	0.63" (16.0mm)	0.56" (14.2mm)	0.84" (21.3mm)	0.94" (23.9mm)
FTP252BST	Plug/Male	1/4"	1/4"	1/4-19	Male BSPT	2	1.15" (29.2mm)	0.63" (16.0mm)	0.56" (14.2mm)	0.84" (21.3mm)	0.94" (23.9mm)
FTP253	Plug/Male	1/4"	3/8"	3/8-18	Male NPTF	2	1.19" (30.2mm)	0.77" (19.6mm)	0.69" (17.5mm)	1.00" (25.4mm)	0.94" (23.9mm)
FTP352	Plug/Male	3/8"	1/4"	1/4-18	Male NPTF	2	1.40" (35.6mm)	0.63" (16.0mm)	0.56" (14.2mm)	1.00" (25.4mm)	1.09" (27.7mm)
FTP352BST	Plug/Male	3/8"	1/4"	1/4-19	Male BSPT	2	1.40" (35.6mm)	0.63" (16.0mm)	0.56" (14.2mm)	1.00" (25.4mm)	1.09" (27.7mm)
FTP353	Plug/Male	3/8"	3/8"	3/8-18	Male NPTF	2	1.40" (35.6mm)	0.77" (19.6mm)	0.69" (17.5mm)	1.00" (25.4mm)	1.13" (28.7mm)
FTP353BST	Plug/Male	3/8"	3/8"	3/8-19	Male BSPT	2	1.40" (35.6mm)	0.77" (19.6mm)	0.69" (17.5mm)	1.00" (25.4mm)	1.13" (28.7mm)
FTP354	Plug/Male	3/8"	1/2"	1/2-14	Male NPTF	2	1.56" (39.6mm)	0.98" (24.9mm)	0.88" (22.4mm)	1.19" (30.2mm)	1.25" (31.8mm)
FTP554	Plug/Male	1/2"	1/2"	1/2-14	Male NPTF	2	1.75" (44.5mm)	0.98" (24.9mm)	0.88" (22.4mm)	1.25" (31.8mm)	1.50" (38.1mm)
FTP556	Plug/Male	1/2"	3/4"	3/4-14	Male NPTF	2	1.75" (44.5mm)	1.25" (31.8mm)	1.13" (28.7mm)	1.50" (38.1mm)	1.56" (39.6mm)


Male/Plug (Figure 3)
Flo-Temp Series \| Female Thread
Part Number	Coupling Type	Body Size	Port Size	Thread	Type	Figure	Dimensions
Part Number	Coupling Type	Body Size	Port Size	Thread	Type	Figure	D	E	Hex
FTP251F	Plug/Male	1/4"	1/8"	1/8-27	Female NPTF	3	1.00" (25.4mm)	0.58" (14.7mm)	0.50" (12.7mm)
FTP252F	Plug/Male	1/4"	1/4"	1/4-18	Female NPTF	3	1.20" (30.5mm)	0.72" (18.3mm)	0.63" (16.0mm)
FTP352F	Plug/Male	3/8"	1/4"	1/4-18	Female NPTF	3	1.38" (35.1mm)	0.72" (18.3mm)	0.63" (16.0mm)
FTP353F	Plug/Male	3/8"	3/8"	3/8-18	Female NPTF	3	1.40" (35.6mm)	0.87" (22.1mm)	0.75" (19.1mm)
FTP354F	Plug/Male	3/8"	1/2"	1/2-14	Female NPTF	3	1.62" (41.1mm)	1.08" (27.4mm)	0.94" (23.9mm)
FTP554F	Plug/Male	1/2"	1/2"	1/2-14	Female NPTF	3	1.72" (43.7mm)	1.08" (27.4mm)	0.94" (23.9mm)
FTP556F	Plug/Male	1/2"	3/4"	3/4-14	Female NPTF	3	1.78" (45.2mm)	1.30" (33.0mm)	1.13" (28.7mm)
