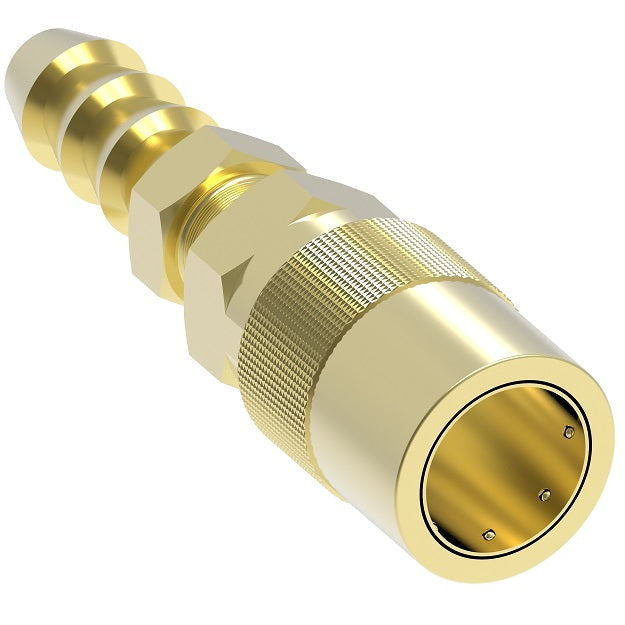

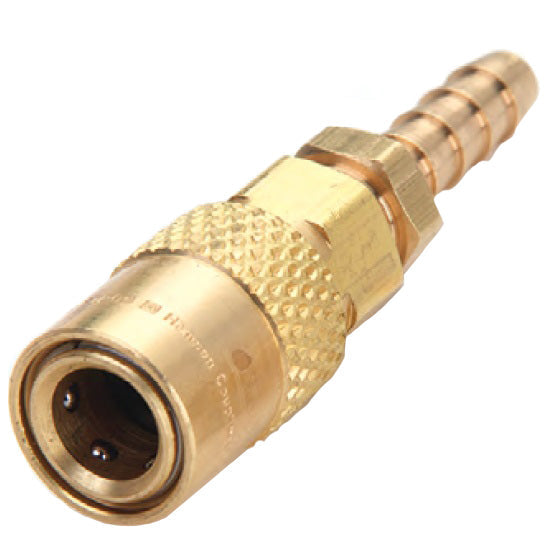

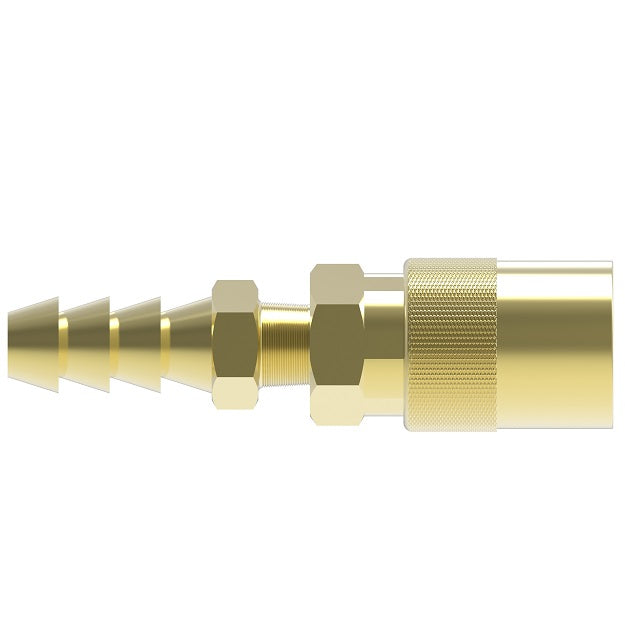

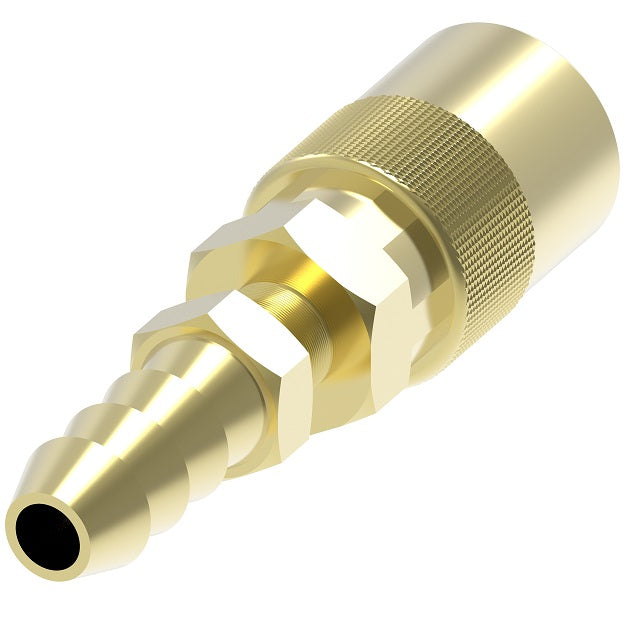

FTS308VHP Hansen® by Danfoss | Thermal Management Quick Disconnect Coupling | Flo-Temp Series | Push-On Hose Barb | 1/2" Hose ID x 3/8" Body Size | Socket | Valved | Buna-N Seal | Brass

FTS308VHP Hansen by Danfoss | Thermal Management Quick Disconnect Coupling | Flo-Temp Series | Push-On Hose Barb | 1/2" Hose ID x 3/8" Body Size | Socket | Valved | Buna-N Seal | Brass

$26.88 - $26.88

$26.88

$26.88 - $26.88

$26.88

Hansen® by Danfoss
Quick Disconnect Coupling | Flo-Temp Series

Quick Disconnect for Thermal Management Applications.

Danfoss' Flo-Temp™ quick disconnect couplings provide the flow needed to cool or heat molds and die casting dies. Sockets are available non-valved for maximum flow and valved to prevent fluid loss when disconnected.

Flo-Temp couplings can be used with water-glycol, hot water and hot oil.

Quantity

Specifications for Variant SKU: FTS308VHP Danfoss
Brand:	Hansen
Series:	Flo-Temp Series
Shape (Orientation):	Straight
Material(s):	Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Valved

Features:	Non valved straight through models for maximum flow. Valved sockets/females for automatic shut-off when line is disconnected. Brass plugs/males with male pipe thread for recessed mounting to avoid damage to plugs/males when molds are being changed or stored.
Applications & Markets:	Injection Molding Heating and Cooling
Materials:	Standard body material: Brass

Size	Max. Operating Pressure		Min. Burst Pressure		Rated Flow
1/4"	14 bar	200 psi	56 bar	800 psi	8.3 lpm	2.2 gpm
3/8"	14 bar	200 psi	56 bar	800 psi	17 lpm	4.5 gpm
1/2"	14 bar	200 psi	56 bar	800 psi	49 lpm	13 gpm


Female/Socket (Figure 1)
Flo-Temp Series \| Straight Hose Stem
Non-Valved Part Number	Valved Part Number	Coupling Type	Body Size	Type	Hose ID	Figure	Dimensions
Non-Valved Part Number	Valved Part Number	Coupling Type	Body Size	Type	Hose ID	Figure	A	B	C
FTS204	FTS204V	Socket/Female	1/4"	Hose Stem	1/4"	1	1.20" (30.5mm)	0.67" (17.0mm)	2.25" (57.2mm)
FTS204HP	FTS204VHP	Socket/Female	1/4"	Push-On Hose Stem	1/4"	1	1.20" (30.5mm)	0.67" (17.0mm)	2.09" (53.1mm)
FTS205	FTS205V	Socket/Female	1/4"	Hose Stem	5/16"	1	1.20" (30.5mm)	0.67" (17.0mm)	2.09" (53.1mm)
FTS206	FTS206V	Socket/Female	1/4"	Hose Stem	3/8"	1	1.20" (30.5mm)	0.67" (17.0mm)	2.25" (57.2mm)
FTS206HP	-	Socket/Female	1/4"	Push-On Hose Stem	3/8"	1	1.20" (30.5mm)	0.67" (17.0mm)	2.34" (59.4mm)
FTS306	FTS306V	Socket/Female	3/8"	Hose Stem	3/8"	1	1.60" (40.6mm)	0.91" (23.1mm)	2.68" (68.1mm)
FTS306HP	-	Socket/Female	3/8"	Push-On Hose Stem	3/8"	1	1.61" (40.9mm)	0.89" (22.6mm)	2.75" (69.9mm)
FTS308	FTS308V	Socket/Female	3/8"	Hose Stem	1/2"	1	1.61" (40.9mm)	0.88" (22.4mm)	2.82" (71.6mm)
FTS308HP	FTS308VHP	Socket/Female	3/8"	Push-On Hose Stem	1/2"	1	1.61" (40.9mm)	0.88" (22.4mm)	2.82" (71.6mm)
FTS504	FTS504V	Socket/Female	1/2"	Hose Stem	1/2"	1	2.25" (57.2mm)	1.18" (30.0mm)	3.42" (86.9mm)
FTS504HP	-	Socket/Female	1/2"	Push-On Hose Stem	1/2"	1	2.25" (57.2mm)	1.18" (30.0mm)	3.62" (91.9mm)
FTS506	-	Socket/Female	1/2"	Hose Stem	3/4"	1	2.22" (56.4mm)	1.18" (30.0mm)	3.85" (97.8mm)
FTS506HP	-	Socket/Female	1/2"	Push-On Hose Stem	3/4"	1	2.22" (56.4mm)	1.18" (30.0mm)	4.35" (110.5mm)


Male/Plug (Figure 2)
Flo-Temp Series \| Male Thread
Part Number	Coupling Type	Body Size	Port Size	Thread	Type	Figure	Dimensions			Installation Recess
Part Number	Coupling Type	Body Size	Port Size	Thread	Type	Figure	A	B	C	DIA	Depth
FTP251	Plug/Male	1/4"	1/8"	1/8-27	Male NPTF	2	0.94" (23.9mm)	0.49" (12.4mm)	0.44" (11.2mm)	0.69" (17.5mm)	0.69" (17.5mm)
FTP251BST	Plug/Male	1/4"	1/8"	1/8-28	Male BSPT	2	0.94" (23.9mm)	0.49" (12.4mm)	0.44" (11.2mm)	0.69" (17.5mm)	0.69" (17.5mm)
FTP252	Plug/Male	1/4"	1/4"	1/4-18	Male NPTF	2	1.15" (29.2mm)	0.63" (16.0mm)	0.56" (14.2mm)	0.84" (21.3mm)	0.94" (23.9mm)
FTP252BST	Plug/Male	1/4"	1/4"	1/4-19	Male BSPT	2	1.15" (29.2mm)	0.63" (16.0mm)	0.56" (14.2mm)	0.84" (21.3mm)	0.94" (23.9mm)
FTP253	Plug/Male	1/4"	3/8"	3/8-18	Male NPTF	2	1.19" (30.2mm)	0.77" (19.6mm)	0.69" (17.5mm)	1.00" (25.4mm)	0.94" (23.9mm)
FTP352	Plug/Male	3/8"	1/4"	1/4-18	Male NPTF	2	1.40" (35.6mm)	0.63" (16.0mm)	0.56" (14.2mm)	1.00" (25.4mm)	1.09" (27.7mm)
FTP352BST	Plug/Male	3/8"	1/4"	1/4-19	Male BSPT	2	1.40" (35.6mm)	0.63" (16.0mm)	0.56" (14.2mm)	1.00" (25.4mm)	1.09" (27.7mm)
FTP353	Plug/Male	3/8"	3/8"	3/8-18	Male NPTF	2	1.40" (35.6mm)	0.77" (19.6mm)	0.69" (17.5mm)	1.00" (25.4mm)	1.13" (28.7mm)
FTP353BST	Plug/Male	3/8"	3/8"	3/8-19	Male BSPT	2	1.40" (35.6mm)	0.77" (19.6mm)	0.69" (17.5mm)	1.00" (25.4mm)	1.13" (28.7mm)
FTP354	Plug/Male	3/8"	1/2"	1/2-14	Male NPTF	2	1.56" (39.6mm)	0.98" (24.9mm)	0.88" (22.4mm)	1.19" (30.2mm)	1.25" (31.8mm)
FTP554	Plug/Male	1/2"	1/2"	1/2-14	Male NPTF	2	1.75" (44.5mm)	0.98" (24.9mm)	0.88" (22.4mm)	1.25" (31.8mm)	1.50" (38.1mm)
FTP556	Plug/Male	1/2"	3/4"	3/4-14	Male NPTF	2	1.75" (44.5mm)	1.25" (31.8mm)	1.13" (28.7mm)	1.50" (38.1mm)	1.56" (39.6mm)


Male/Plug (Figure 3)
Flo-Temp Series \| Female Thread
Part Number	Coupling Type	Body Size	Port Size	Thread	Type	Figure	Dimensions
Part Number	Coupling Type	Body Size	Port Size	Thread	Type	Figure	D	E	Hex
FTP251F	Plug/Male	1/4"	1/8"	1/8-27	Female NPTF	3	1.00" (25.4mm)	0.58" (14.7mm)	0.50" (12.7mm)
FTP252F	Plug/Male	1/4"	1/4"	1/4-18	Female NPTF	3	1.20" (30.5mm)	0.72" (18.3mm)	0.63" (16.0mm)
FTP352F	Plug/Male	3/8"	1/4"	1/4-18	Female NPTF	3	1.38" (35.1mm)	0.72" (18.3mm)	0.63" (16.0mm)
FTP353F	Plug/Male	3/8"	3/8"	3/8-18	Female NPTF	3	1.40" (35.6mm)	0.87" (22.1mm)	0.75" (19.1mm)
FTP354F	Plug/Male	3/8"	1/2"	1/2-14	Female NPTF	3	1.62" (41.1mm)	1.08" (27.4mm)	0.94" (23.9mm)
FTP554F	Plug/Male	1/2"	1/2"	1/2-14	Female NPTF	3	1.72" (43.7mm)	1.08" (27.4mm)	0.94" (23.9mm)
FTP556F	Plug/Male	1/2"	3/4"	3/4-14	Female NPTF	3	1.78" (45.2mm)	1.30" (33.0mm)	1.13" (28.7mm)
