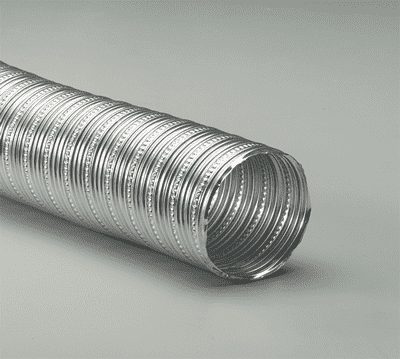

4-Bendway-A-5 Flexaust Bendway A 4 inch Air and Fume Duct Hose - 5ft

4-Bendway-A-5 by Flexaust | #4950400005 | Bendway A | Air and Fume Duct Hose | 4 inch | 5ft

Save $22.77

$56.92

$56.92 - $56.92

$56.92

$34.15

$34.15 - $34.15

$34.15

Flexaust Bendway® A Air and Fume Duct Hose. Single-ply helically corrugated aluminum alloy hose with a four-ply finished seam that is folded flat and crimped for tightness and strength

Package Quantity: 5 FT

Specifications for Variant SKU: 4-Bendway-A-5 Flexaust \| 5 \|
Brand:	Bendway
Series:	Bendway A
Hose Color(s):	Metallic
Internal Diameter:	4in
Tubing Construction:	Aluminum Alloy

SPECIFICATIONS

Other Features:
Applications:	Circuit Board Cooling	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Single-ply helically corrugated aluminum alloy
Reinforcement:	Four-ply finished seam that is folded flat and crimped for tightness and strength	Cover:	N/A
Temperature Range:	-100 deg. F to 400 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Light weight & hand bendable allowing for elbows & turns to be formed easily during installation. Self-supporting construction allows for bends to stay in place. Resists metal fatigue, weathering, & most corrosive fumes & chemicals. Not recommended for continuous flexing.

Part Number 5 ft Reels	Part Number 10 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 5ft (Lbs/Ft)	Weight - 10ft (Lbs/Ft)
Bendway A 2in	Bendway A 2in	2"	.008"	4"	N/A	N/A	N/A	0.565 lbs	1.13 lbs
Bendway A 3in	Bendway A 3in	3"	.008"	5.7"	N/A	N/A	N/A	0.835 lbs	1.67 lbs
Bendway A 4in	Bendway A 4in	4"	.008"	7.48"	N/A	N/A	N/A	1 lbs	2 lbs
Bendway A 5in	Bendway A 5in	5"	.008"	9.34"	N/A	N/A	N/A	1.25 lbs	2.5 lbs
Bendway A 6in	Bendway A 6in	6"	.008"	11.2"	N/A	N/A	N/A	1.5 lbs	3 lbs
Bendway A 7in	Bendway A 7in	7"	.008"	13.06"	N/A	N/A	N/A	1.75 lbs	3.5 lbs
Bendway A 8in	Bendway A 8in	8"	.008"	14.96"	N/A	N/A	N/A	1.75 lbs	3.5 lbs
Bendway A 9in	Bendway A 9in	9"	.008"	16.82"	N/A	N/A	N/A	2 lbs	4 lbs
Bendway A 10in	Bendway A 10in	10"	.008"	18.68"	N/A	N/A	N/A	2.2 lbs	4.4 lbs
Bendway A 12in	Bendway A 12in	12"	.008"	22.39"	N/A	N/A	N/A	2.65 lbs	5.3 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
