2.5-CWGP-25 Flexaust CWGP 2.5 inch Dust Duct Hose - 25ft
2.5-CWGP-25 Flexaust CWGP 2.5 inch Dust Duct Hose - 25ft
2.5-CWGP-25 Flexaust CWGP 2.5 inch Dust Duct Hose - 25ft
2.5-CWGP-25 Flexaust CWGP 2.5 inch Dust Duct Hose - 25ft

2.5-CWGP-25 by Flexaust | #1030250025 | CWGP Series | Dust Duct Hose | 2.5 inch | 25ft

Save $133.83 Save $133.83
$334.58
$334.58 - $334.58
$334.58
$200.75
$200.75 - $200.75
$200.75

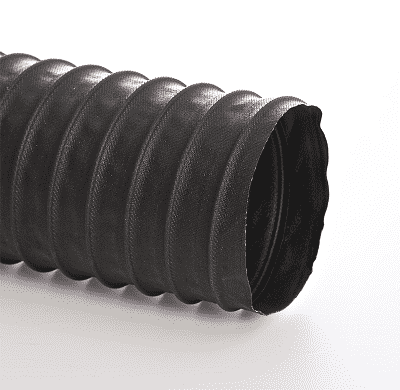

Flexaust CWGP Series | Dust Removal Ducting Hose
Made of double-ply black neoprene coated polyester fabric, reinforced with a spring steel wire helix.

Package Quantity: 25 FT

Specifications for Variant SKU: 2.5-CWGP-25 Flexaust | 25 |
Brand: Flexaust
Series: CWGP
Hose Color(s): Black
Internal Diameter: 2.50in
Tubing Construction: Neoprene Coated Polyester
Applicable Specs & Approvals: UL 94V-0 Flammability Rating
Applications: Aluminum Refractory, Car Wash, Flame Retardant, Flight Simulators, Grinders, HEPA, Landfill Venting, Laser Engraving, Mining, Off-Road, Plastic Bag Machines, Sheet Metal, Shipyards, Wave Pool Blowers SAE Rating: N/A
Other Ratings: N/A Tube: Double-ply black neoprene coated polyester fabric
Reinforcement: Spring steel wire helix Cover: N/A
Temperature Range: -40 deg. F to 250 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Good crush resistance & tensile strength
  • Neoprene coating offers excellent abrasion & chemical resistance.
  • Good flexibility.
  • More durable than double-ply cotton hoses.
  • Listed as UL 94V-0 flame retardant.
Part Number 25 ft Reels Inside Diameter Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
CWGP 1in 1" 1.1" 3:1 29 30 3 lbs
CWGP 1.25in 1.25" 1.3" 3:1 29 30 3.5 lbs
CWGP 1.5in 1.5" 1.7" 3:1 29 30 4.25 lbs
CWGP 1.75in 1.75" 1.85" 3:1 29 30 5 lbs
CWGP 2in 2" 2" 4:1 29 30 6.25 lbs
CWGP 2.25in 2.25" N/A N/A N/A N/A N/A
CWGP 2.5in 2.5" 1.8" 4:1 29 30 7.25 lbs
CWGP 3in 3" 2.4" 4:1 29 30 8.5 lbs
CWGP 3.5in 3.5" 2.5" 4:1 22 29 10 lbs
CWGP 4in 4" 3.1" 5:1 29 30 14 lbs
CWGP 4.5in 4.5" 3.2" 5:1 23 19 15.75 lbs
CWGP 5in 5" 3.5" 5:1 17 17 18.75 lbs
CWGP 5.5in 5.5" 4" 5:1 16 14 20.25 lbs
CWGP 6in 6" 4.5" 5:1 21 11 23.75 lbs
CWGP 7in 7" 5" 5:1 14 8 24.75 lbs
CWGP 8in 8" 6" 6:1 12 6.5 27.5 lbs
CWGP 9in 9" 6.5" 6:1 9 6 30 lbs
CWGP 10in 10" 7.5" 8:1 7 5 32.5 lbs
CWGP 12in 12" 8" 8:1 4 4.3 37.5 lbs
CWGP 14in 14" 10" 8:1 3.7 3.6 55 lbs
CWGP 16in 16" 12" 8:1 2.5 3.2 62.5 lbs
CWGP 18in 18" 13" 8:1 1.8 3 70 lbs
CWGP 20in 20" 14" 8:1 1.3 2.6 77.5 lbs
CWGP 22in 22" 15" 8:1 .81 2.4 87.5 lbs
CWGP 24in 24" 17" 8:1 .75 2.2 95 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
