2-CWS-25 Flexaust CWS 2 inch Air and Fume Duct Hose - 25ft

2-CWS-25 by Flexaust | #1400200025 | CWS Series | Air and Fume Duct Hose | 2 inch | 25ft

Save $115.17

$287.92

$287.92 - $287.92

$287.92

$172.75

$172.75 - $172.75

$172.75

Flexaust
CWS Air and Fume Duct Hose

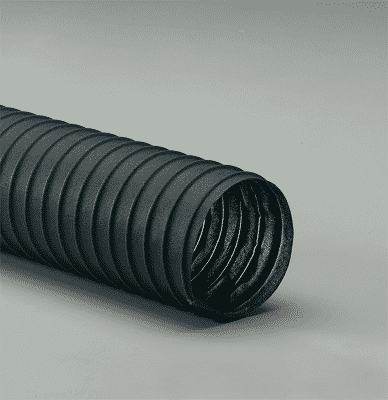

Single-ply black neoprene coated polyester fabric hose reinforced with a spring steel wire helix.

Package Quantity: 25 FT

Specifications for Variant SKU: 2-CWS-25 Flexaust \| 25 \|
Brand:	Flexaust
Series:	CWS
Hose Color(s):	Black
Internal Diameter:	2in
Tubing Construction:	Neoprene Coated Polyester

SPECIFICATIONS

Other Features:
Applications:	Auto Tellers, Confined Space Ventilation, Flame Retardant, Shipyards	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Single-ply black neoprene coated polyester fabric
Reinforcement:	Spring steel wire helix	Cover:	N/A
Temperature Range:	-65 deg. F to 250 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Recommended for light duty, low pressure applications Extremely flexible. Neoprene coating offers excellent abrasion & chemical resistance. Designed for applications with wide temperature ranges. Listed as UL 94V-0 flame retardant.

Part Number 25 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 25ft (Lbs/Ft)
CWS 1.5in	1.5"	N/A	N/A	N/A	N/A	N/A	N/A
CWS 1.75in	1.75"	N/A	N/A	N/A	N/A	N/A	N/A
CWS 2in	2"	N/A	1.8"	4:1	29	30	6 lbs
CWS 2.25in	2.25"	N/A	N/A	N/A	N/A	N/A	N/A
CWS 2.5in	2.5"	N/A	2"	4:1	29	30	6.25 lbs
CWS 3in	3"	N/A	2.5"	4:1	29	30	9 lbs
CWS 3.5in	3.5"	N/A	N/A	N/A	N/A	N/A	N/A
CWS 4in	4"	N/A	3"	4:1	29	18	11.75 lbs
CWS 4.5in	4.5"	N/A	N/A	N/A	N/A	N/A	N/A
CWS 5in	5"	N/A	3.5"	4:1	17	15	14.75 lbs
CWS 5.5in	5.5"	N/A	N/A	N/A	N/A	N/A	N/A
CWS 6in	6"	N/A	4"	4:1	16	7	16.75 lbs
CWS 7in	7"	N/A	N/A	N/A	N/A	N/A	N/A
CWS 8in	8"	N/A	5.5"	5:1	10	5	22.5 lbs
CWS 9in	9"	N/A	N/A	N/A	N/A	N/A	N/A
CWS 10in	10"	N/A	6"	6:1	4	4	27.5 lbs
CWS 12in	12"	N/A	7"	6:1	3	3	35 lbs
CWS 14in	14"	N/A	N/A	N/A	N/A	N/A	N/A
CWS 16in	16"	N/A	N/A	N/A	N/A	N/A	N/A

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
