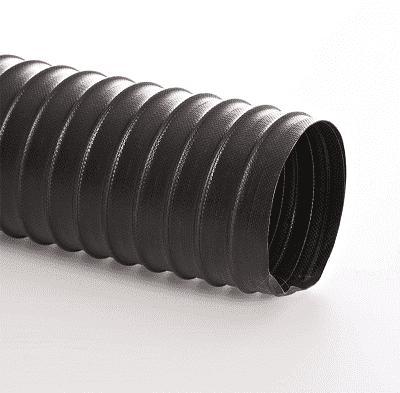

20-CWY-25 Flexaust CWY 20 inch Material Handling Duct Hose - 25ft

20-CWY-25 by Flexaust | #2002000025 | CWY Series | Material Handling Duct Hose | 20 inch | 25ft

Save $190.00

$1,900.00

$1,900.00 - $1,900.00

$1,900.00

$1,710.00

$1,710.00 - $1,710.00

$1,710.00

Flexaust CWY Material Handling Duct Hose Double-ply black neoprene coated nylon fabric hose reinforced with a spring steel wire helix.

Package Quantity: 25 FT

Quantity

Specifications for Variant SKU: 20-CWY-25 Flexaust \| 25 \|
Brand:	Flexaust
Series:	CWY
Hose Color(s):	Black
Internal Diameter:	20in
Tubing Construction:	Neoprene Coated Nylon

SPECIFICATIONS

Other Features:
Applications:	Foundry Sand Transfer, Glass Clinching, Material Handling, Powder & Bulk, Shredders, Street & Parking Lot Sweepers	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Double-ply black neoprene coated nylon fabric
Reinforcement:	Spring steel wire helix	Cover:	N/A
Temperature Range:	-40 deg. F to 250 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Neoprene & nylon construction offers excellent abrasion resistance & superior flex life. Handles both positive & negative pressure. Excellent tensile strength.

Part Number 25 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 25ft (Lbs/Ft)
CWY 4in	4"	N/A	4"	3.2:1	29	30	16.25 lbs
CWY 4.5in	4.5"	N/A	N/A	N/A	N/A	N/A	N/A
CWY 5in	5"	N/A	4.1"	3.2:1	25	30	20 lbs
CWY 5.5in	5.5"	N/A	N/A	N/A	N/A	N/A	N/A
CWY 6in	6"	N/A	4.7"	3.5:1	24	30	27.5 lbs
CWY 7in	7"	N/A	5.1"	3.5:1	16	26	30 lbs
CWY 8in	8"	N/A	5.7"	3.5:1	14	23	32.5 lbs
CWY 9in	9"	N/A	N/A	N/A	N/A	N/A	N/A
CWY 10in	10"	N/A	7.2"	4:1	7	19	40 lbs
CWY 12in	12"	N/A	8.6"	4:1	4	15	47.5 lbs
CWY 14in	14"	N/A	9.8"	4:1	3	11	65 lbs
CWY 16in	16"	N/A	11.2"	4:1	2	9	75 lbs
CWY 18in	18"	N/A	11.6"	4:1	1.5	7	77.5 lbs
CWY 20in	20"	N/A	13"	4:1	1.1	5	87.5 lbs
CWY 22in	22"	N/A	N/A	N/A	N/A	N/A	N/A
CWY 24in	24"	N/A	15.4"	4:1	.6	3	102.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
