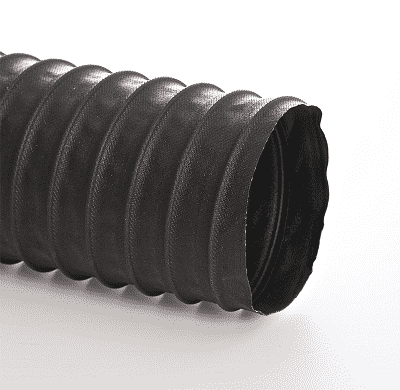

2-Conduct-O-Flex-25 Flexaust Conduct-O-Flex 2 inch Dust Duct Hose - 25ft

2-Conduct-O-Flex-25 by Flexaust | #1020200025 | Conduct-O-Flex Dust Duct Hose | 2 inch | 25ft

Save $36.00 Save $36.00
$360.00
$360.00 - $360.00
$360.00
$324.00
$324.00 - $324.00
$324.00

Flexaust Conduct-O-Flex Dust Duct Hose Double-ply black neoprene coated polyester fabric hose coated with a conductive elastomer reinforced with a spring steel wire helix.

Package Quantity: 25 FT

Specifications for Variant SKU: 2-Conduct-O-Flex-25 Flexaust | 25 |
Brand: Flexaust
Series: Conduct-O-Flex
Hose Color(s): Black
Internal Diameter: 2in
Tubing Construction: Neoprene Coated Polyester
Special Properties: Conductive Hose Cover, Conductive Tube

SPECIFICATIONS

Applications: Static Control SAE Rating: N/A
Other Ratings: N/A Tube: Double-ply black neoprene coated polyester fabric hose coated with a conductive elastomer
Reinforcement: Spring steel wire helix Cover: N/A
Temperature Range: -40 deg. F to 250 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Good crush resistance & tensile strength
  • Neoprene coating offers excellent abrasion & chemical resistance.
  • Good flexibility.
  • More durable than double-ply cotton hoses.
  • High conductivity reduces the danger of static buildup and allows electrostatic buildup to escape when properly grounded.
  • Surface Resistivity Level: 103-105 Ohms/Square.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
Conduct-O-Flex 1in 1" N/A 1" 2.8:1 29 30 3.625 lbs
Conduct-O-Flex 1.25in 1.25" N/A 1.2" 2.8:1 29 30 4.45 lbs
Conduct-O-Flex 1.5in 1.5" N/A 1.4" 2.8:1 29 30 5.25 lbs
Conduct-O-Flex 2in 2" N/A 2" 2.8:1 29 30 7.425 lbs
Conduct-O-Flex 2.5in 2.5" N/A 2" 2.9:1 29 30 7.575 lbs
Conduct-O-Flex 3in 3" N/A 2.13" 3:1 29 29 9.025 lbs
Conduct-O-Flex 3.5in 3.5" N/A 2.48" 3:1 25 21 10.5 lbs
Conduct-O-Flex 4in 4" N/A 2.8" 3.7:1 29 16 14.65 lbs
Conduct-O-Flex 4.5in 4.5" N/A 3.15" 3.7:1 23 16 16.375 lbs
Conduct-O-Flex 5in 5" N/A 3.5" 3.7:1 22 15 18.175 lbs
Conduct-O-Flex 6in 6" N/A 4" 4:1 22 13 25 lbs
Conduct-O-Flex 7in 7" N/A 4.7" 4:1 14 14 28.75 lbs
Conduct-O-Flex 8in 8" N/A 5.5" 5:1 7.3 10 28.45 lbs
Conduct-O-Flex 10in 10" N/A 7" 5:1 3.79 8 35.425 lbs
Conduct-O-Flex 12in 12" N/A 8.2" 5:1 2.22 7 42.375 lbs
Conduct-O-Flex 14in 14" N/A 9.4" 5.5:1 3.11 5 59.5 lbs
Conduct-O-Flex 16in 16" N/A 10.8" 5.5:1 2.09 4 68 lbs
Conduct-O-Flex 18in 18" N/A 12" 5:1 1.5 4 80 lbs
Conduct-O-Flex 24in 24" N/A 16" 5:1 .62 3 105 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
