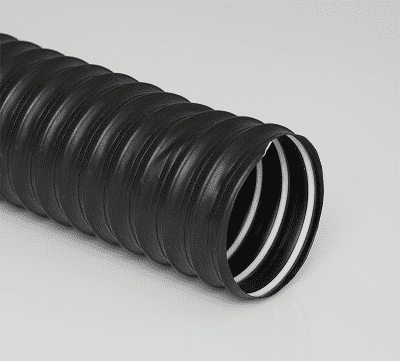

3-DFD-T-25 Flexaust DFD-T (DFDT) 3 inch Air Duct Hose - 25ft

3-DFD-T-25 by Flexaust | #DFDT300025 | DFD-T Series | Air Duct Hose | 3 inch | 25ft

Save $8.78

$87.78

$87.78 - $87.78

$87.78

$79.00

$79.00 - $79.00

$79.00

Flexaust Dayflex DFD-T (DFDT) Air Duct Hose Light weight black thermoplastic propylene-ethylene copolymer hose reinforced with an internal polypropylene helix

Package Quantity: 25 FT

Quantity

Specifications for Variant SKU: 3-DFD-T-25 Flexaust \| 25 \|
Brand:	Dayflex
Series:	DFD-T
Hose Color(s):	Black
Internal Diameter:	3in
Tubing Construction:	Thermoplastic Propylene-Ethylene Copolymer
Applicable Specs & Approvals:	FMVSS 302

SPECIFICATIONS

Other Features:
Applications:	Bus Ventilation, Cab Ventilation, Defroster/Heater, Limo A/C Duct, R.V. Manufacturing, Race Car Helmet Ventilation	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Light weight black thermoplastic propylene-ethylene copolymer
Reinforcement:	Internal polypropylene helix	Cover:	N/A
Temperature Range:	-40 deg. F to 225 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Pliable helix can be formed to fit various applications. Flexible, crush resistant, & compressible. Meets FMVSS 302 flame standards. Great choice for heater/defroster & ventilation applications.

Part Number 25 ft Reels	Part Number 50 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 25ft (Lbs/Ft)	Weight - 50ft (Lbs/Ft)
DFD-T 1in	DFD-T 1in	1"	N/A	1"	2:1	N/A	11	1 lbs	2 lbs
DFD-T 1.25in	DFD-T 1.25in	1.25"	N/A	1.5"	2:1	N/A	10	1.5 lbs	3 lbs
DFD-T 1.5in	DFD-T 1.5in	1.5"	N/A	2"	3:1	N/A	10	2 lbs	4 lbs
DFD-T 1.75in	DFD-T 1.75in	1.75"	N/A	2.5"	3:1	N/A	10	2.25 lbs	4.5 lbs
DFD-T 2in	DFD-T 2in	2"	N/A	3"	3:1	N/A	10	2.5 lbs	5 lbs
DFD-T 2.25in	DFD-T 2.25in	2.25"	N/A	3.5"	3:1	N/A	9	2.75 lbs	5.5 lbs
DFD-T 2.5in	DFD-T 2.5in	2.5"	N/A	3.75"	3:1	N/A	9	3.25 lbs	6.5 lbs
DFD-T 3in	DFD-T 3in	3"	N/A	4.25"	3:1	N/A	8	3.5 lbs	7 lbs
DFD-T 4in	DFD-T 4in	4"	N/A	4.5"	3:1	N/A	3	5.5 lbs	11 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
