5-FSP-1-25 Flexaust FSP-1 (FSP1) 5 inch Air and Fume Duct Hose - 25ft
5-FSP-1-25 Flexaust FSP-1 (FSP1) 5 inch Air and Fume Duct Hose - 25ft
5-FSP-1-25 Flexaust FSP-1 (FSP1) 5 inch Air and Fume Duct Hose - 25ft
5-FSP-1-25 Flexaust FSP-1 (FSP1) 5 inch Air and Fume Duct Hose - 25ft

5-FSP-1-25 by Flexaust | #2460500025 | FSP-1 Series | Air and Fume Duct Hose | 5 inch | 25ft

Save $136.17 Save $136.17
$340.42
$340.42 - $340.42
$340.42
$204.25
$204.25 - $204.25
$204.25

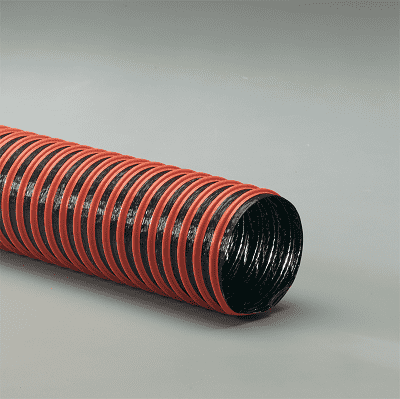

Flexaust FSP-1 (FSP1) Air and Fume Duct Hose Single-ply black PVC vinyl coated polyester fabric hose reinforced with a spring steel wire helix & orange external PVC wearstrip.

Package Quantity: 25 FT

Specifications for Variant SKU: 5-FSP-1-25 Flexaust | 25 |
Brand: Flexaust
Series: FSP-1
Hose Color(s): Red
Internal Diameter: 5in
Tubing Construction: PVC Coated Polyester
Special Properties: Outer Helix Protection

SPECIFICATIONS

Applications: Cab Ventilation, Chemical and Welding Fume Extraction, Flame Retardant, HEPA, Landfill Venting, Oil Mist Extraction, Ozone, Paint Spray Extraction, Ultra Violet Dryers SAE Rating: N/A
Other Ratings: N/A Tube: Single-ply black PVC vinyl coated polyester fabric
Reinforcement: Spring steel wire helix & orange external PVC wearstrip Cover: N/A
Temperature Range: -20 deg. F to 180 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Wearstrip offers additional external abrasion & drag resistance.
  • Low friction loss.
  • Great chemical & moisture resistance.
  • Listed as UL 94V-0 flame retardant.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
FSP-1 3in 3" N/A 3.5" 2.5:1 29 26 12.5 lbs
FSP-1 4in 4" N/A 4" 2.5:1 24 13 16.25 lbs
FSP-1 5in 5" N/A 4.5" 2.5:1 17 11 18.75 lbs
FSP-1 6in 6" N/A 5" 4:1 16 6 21.25 lbs
FSP-1 7in 7" N/A 6" 4:1 12 5 27.5 lbs
FSP-1 8in 8" N/A 7" 4:1 9 4 31.25 lbs
FSP-1 10in 10" N/A 8.6" 4:1 4 3 39.25 lbs
FSP-1 12in 12" N/A 10.3" 4:1 3 2.5 47 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
