14-FSP-5-25 Flexaust FSP-5 (FSP5) 14 inch Air Duct Hose - 25ft

14-FSP-5-25 by Flexaust | #4101400025 | FSP-5 Series | Air Duct Hose | 14 inch | 25ft

Save $38.63

$386.30

$386.30 - $386.30

$386.30

$347.67

$347.67 - $347.67

$347.67

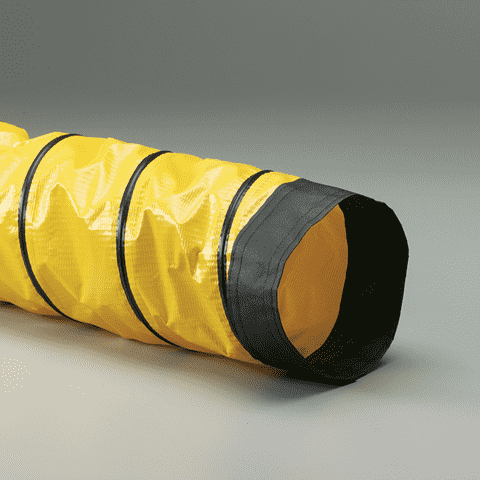

Flexaust Springflex FSP-5 (FSP5) Air Duct Hose

Single-ply yellow PVC vinyl coated polyester fabric hose reinforced with a spring steel wire helix & black external PVC wearstrip.

Ships without Sewn Cuff shown in image. Call 330-535-7105 for information on End Finish Pricing and Availability.

Package Quantity: 25 FT

Quantity

Specifications for Variant SKU: 14-FSP-5-25 Flexaust \| 25 \|
Brand:	Springflex
Series:	FSP-5
Hose Color(s):	Black & Yellow
Internal Diameter:	14in
Tubing Construction:	PVC Coated Polyester

Springflex End Finishes Ships without Sewn Cuff shown in image. Call 330-535-7105 for information on End Finish Pricing and Availability.


Sewn Cuff	Standard/Enclosed Belted Cuff	Funnel Cuff	Belt Loop & Pull Tabs	Wire Rope/Nylon Ring	Sto-Sack

SPECIFICATIONS

Other Features:
Applications:	A/C Ventilation, Chiller, Dehumidification, Fans & Blowers, Flame Retardant, Function Tent HVAC, HEPA, Humidity Control, HVAC, Ventilation	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Single-ply yellow PVC vinyl coated polyester fabric
Reinforcement:	Spring steel wire helix & black external PVC wearstrip	Cover:	N/A
Temperature Range:	-20 deg. F to 180 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Lightweight duct for blower applications. Great compressibility with an 11:1 compressibility ratio. Retractability allows for convenient storage & easy transport in a fraction of its fully extended length. Wearstrip offers additional external abrasion & drag resistance. Listed as UL 94V-0 flame retardant. Manufactured with materials that meet NFPA 701 standards. Shown with optional cuff.

Part Number 25 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 25ft (Lbs/Ft)
FSP-5 4in	4"	N/A	2"	10:1	9	13	6.25 lbs
FSP-5 5in	5"	N/A	3.1"	10:1	7	12	8 lbs
FSP-5 6in	6"	N/A	3"	11:1	3.5	11	7.5 lbs
FSP-5 8in	8"	N/A	4.5"	11:1	2.8	8	11.25 lbs
FSP-5 10in	10"	N/A	5.5"	11:1	2	7	15 lbs
FSP-5 12in	12"	N/A	6.75"	11:1	1	5	17.5 lbs
FSP-5 14in	14"	N/A	8"	11:1	.75	5	20 lbs
FSP-5 16in	16"	N/A	9"	11:1	.5	5	22.5 lbs
FSP-5 18in	18"	N/A	10"	11:1	.4	4	25 lbs
FSP-5 20in	20"	N/A	11"	11:1	.3	3	27.5 lbs
FSP-5 22in	22"	N/A	12.5"	11:1	.2	3	32.5 lbs
FSP-5 24in	24"	N/A	13.5"	11:1	.1	2	35 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
