12-Flex-Lok-1200-25 Flexaust Flex-Lok 1200 12 inch Fume Duct Hose - 25ft

12-Flex-Lok-1200-25 by Flexaust | #1941200025 | Flex-Lok 1200 | Fume Duct Hose | 12 inch | 25ft

Save $3,300.17 Save $3,300.17
$8,250.42
$8,250.42 - $8,250.42
$8,250.42
$4,950.25
$4,950.25 - $4,950.25
$4,950.25

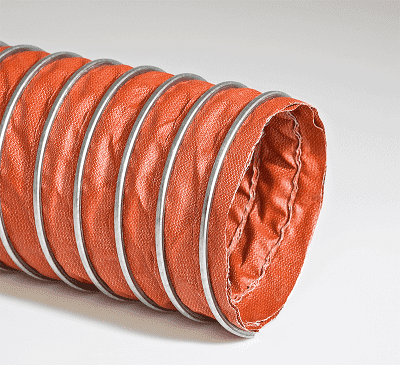

Flexaust Flex-Lok® 1200 Fume Duct Hose Double-ply red wire inserted fiberglass fabric hose mechanically crimped in a continuous process.

Package Quantity: 25 FT

Specifications for Variant SKU: 12-Flex-Lok-1200-25 Flexaust | 25 |
Brand: Flex-Lok
Series: Flex-Lok 1200
Hose Color(s): Orange
Internal Diameter: 12in
Tubing Construction: Fiberglass Fabric
Special Properties: Outer Helix Protection

SPECIFICATIONS

Applications: Diesel/Engine Exhaust, Dynamometer Testing, Fume Exhaust, Glass Drying, High Temperature, Paper Mills, Tractor Pull Exhaust, Vehicle Exhaust Systems SAE Rating: N/A
Other Ratings: N/A Tube: Double-ply red wire inserted fiberglass fabric hose
Reinforcement: Coated steel wire and a metal strip formed into a clip Cover: N/A
Temperature Range: -40 deg. F to 1200 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Fabric is locked around a coated steel wire by a metal strip formed into a clip.
  • Metal strip acts as a wearstrip and offers outstanding external abrasion resistance.
  • Extreme temperature resistance with excellent heat stability.
  • Good flexibility & flow characteristics.
  • Inserted wire fabric increases tensile strength for a longer life cycle.
  • Excellent for reel & drop systems.
  • Ideal for applications where extreme temperatures are a factor.
  • Negative pressure fan system with ambient air inlet recommended to maximize effectiveness and life of duct.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
Flex-Lok 1200 4in 4" N/A 4" 3:1 9 16 27.5 lbs
Flex-Lok 1200 5in 5" N/A 5" 4:1 8 13.5 32.5 lbs
Flex-Lok 1200 6in 6" N/A 6" 4:1 7 12 40 lbs
Flex-Lok 1200 8in 8" N/A 8" 4:1 4 10 55 lbs
Flex-Lok 1200 10in 10" N/A 10" 4:1 3.5 9.5 62.5 lbs
Flex-Lok 1200 12in 12" N/A 12" 4:1 3 8 70 lbs
Flex-Lok 1200 14in 14" N/A N/A N/A N/A N/A N/A
Flex-Lok 1200 16in 16" N/A N/A N/A N/A N/A N/A
Flex-Lok 1200 18in 18" N/A N/A N/A N/A N/A N/A

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
