18-Flex-Lok-750-25 Flexaust Flex-Lok 750 18 inch Fume Duct Hose - 25ft

18-Flex-Lok-750-25 by Flexaust | #1951800025 | Flex-Lok 750 Fume Duct Hose | 18 inch | 25ft

Save $2,502.50

$6,256.25

$6,256.25 - $6,256.25

$6,256.25

$3,753.75

$3,753.75 - $3,753.75

$3,753.75

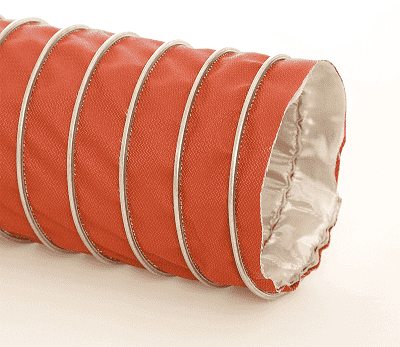

Flexaust Flex-Lok 750 Fume Duct Hose Double-ply red wire inserted fiberglass fabric hose with a silver heat-resistant fiberglass liner mechanically crimped in a continuous process

Package Quantity: 25 FT

Specifications for Variant SKU: 18-Flex-Lok-750-25 Flexaust \| 25 \|
Brand:	Flex-Lok
Series:	Flex-Lok 750
Hose Color(s):	Orange
Internal Diameter:	18in
Tubing Construction:	Fiberglass Fabric
Special Properties:	Outer Helix Protection

SPECIFICATIONS

Other Features:
Applications:	Diesel/Engine Exhaust, Dynamometer Testing, Exhaust Systems, Fume Exhaust, Glass Drying, High Temperature, Paper Mills, Vehicle Exhaust Systems	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Double-ply red wire inserted fiberglass fabric hose with a silver heat-resistant fiberglass liner
Reinforcement:	Coated steel wire	Cover:	N/A
Temperature Range:	-40 deg. F to 750 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Fabric is locked around a coated steel wire by a metal strip formed into a clip. Metal strip acts as a wearstrip and offers outstanding external abrasion resistance. Excellent heat stability. Good flexibility, durability & flow characteristics. Inserted wire fabric & fiberglass liner increases tensile strength for a longer life cycle. Excellent for reel & drop systems. Ideal for high temperature diesel exhaust applications. Negative pressure fan system with ambient air inlet recommended to maximize effectiveness and life of duct.

Part Number 25 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 25ft (Lbs/Ft)
Flex-Lok 750 3in	3"	N/A	3"	3:1	10	16	20 lbs
Flex-Lok 750 4in	4"	N/A	3.5"	3:1	9	15	25 lbs
Flex-Lok 750 5in	5"	N/A	4"	5:1	8	13.5	22.5 lbs
Flex-Lok 750 6in	6"	N/A	5"	5:1	7	12	27.5 lbs
Flex-Lok 750 7in	7"	N/A	N/A	N/A	N/A	N/A	N/A
Flex-Lok 750 8in	8"	N/A	7"	5:1	4	10	42.5 lbs
Flex-Lok 750 9in	9"	N/A	N/A	N/A	N/A	N/A	N/A
Flex-Lok 750 10in	10"	N/A	9"	5:1	3.5	9.5	50 lbs
Flex-Lok 750 12in	12"	N/A	11"	5:1	3	8	57.5 lbs
Flex-Lok 750 14in	14"	N/A	N/A	N/A	N/A	N/A	N/A
Flex-Lok 750 16in	16"	N/A	N/A	N/A	N/A	N/A	N/A
Flex-Lok 750 18in	18"	N/A	N/A	N/A	N/A	N/A	N/A

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
