1.5-Flex-Vest-12 Flexaust Flex-Vest 1.5 inch Air Duct Hose - 12ft
1.5-Flex-Vest-12 Flexaust Flex-Vest 1.5 inch Air Duct Hose - 12ft
1.5-Flex-Vest-12 Flexaust Flex-Vest 1.5 inch Air Duct Hose - 12ft
1.5-Flex-Vest-12 Flexaust Flex-Vest 1.5 inch Air Duct Hose - 12ft

1.5-Flex-Vest-12 by Flexaust | #3050150012 | Flex-Vest | Air Duct Hose | 1.5 inch | 12ft

Save $26.92 Save $26.92
$269.21
$269.21 - $269.21
$269.21
$242.29
$242.29 - $242.29
$242.29

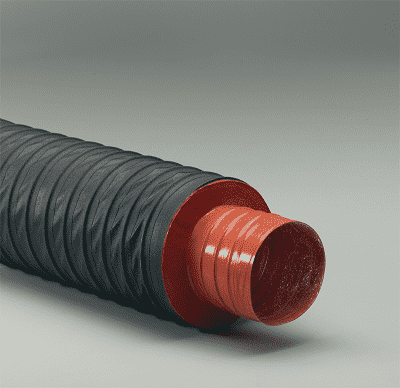

Flexaust Heat-Flex Flex-Vest Air Duct Hose

Inner Layer; Double-ply iron oxide red silicone coated fiberglass fabric hose reinforced with a spring steel wire helix, Outer layer; Single-ply black neoprene coated polyester fabric hose reinforced with a spring steel wire helix

Package Quantity: 12 FT

Specifications for Variant SKU: 1.5-Flex-Vest-12 Flexaust
Brand: Heat-Flex
Series: Flex-Vest
Hose Color(s): Black
Internal Diameter: 1.50in
Tubing Construction: Silicone Coated Fiberglass
Cover Construction: Neoprene Coated Polyester

SPECIFICATIONS

Applications: Aerospace SAE Rating: N/A
Other Ratings: N/A Tube: Double-ply iron oxide red silicone coated fiberglass fabric.
Reinforcement: Inner Layer; Spring steel wire helix. Outer layer; Spring steel wire helix. Cover: Single-ply black neoprene coated polyester fabric.
Temperature Range: -65 deg. F to 550 deg. F inner layer intermittent to 600 deg. F -40 deg. F to 250 deg. F outer layer Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Insulation; 1-inch fiberglass insulation (R-Value=4).
  • Insulated dryer hose.
  • Combines flexibility with minimal heat loss.
  • Suited for air handling applications at low positive & low negative pressures.
  • Good flexibility.
  • Excellent external abrasion & chemical resistance.
Part Number 12 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 12ft (Lbs/Ft)
Flex-Vest 1in 1" N/A 2" 2.5:1 29 30 6 lbs
Flex-Vest 1.5in 1.5" N/A 2.5" 2.5:1 29 30 7.2 lbs
Flex-Vest 2in 2" N/A 3" 2.5:1 29 30 9.6 lbs
Flex-Vest 2.5in 2.5" N/A 3.5" 2.5:1 29 30 10.8 lbs
Flex-Vest 3in 3" N/A 4" 2.5:1 29 30 12 lbs
Flex-Vest 4in 4" N/A 4.5" 2:1 27 30 14.4 lbs
Flex-Vest 6in 6" N/A 5.5" 2:1 9 19 19.2 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
