4-Flx-Thane-HD-25 Flexaust Flx-Thane HD 4 inch Material Handling Duct Hose - 25ft

4-Flx-Thane-HD-25 by Flexaust | Flx-Thane HD | Material Handling Duct Hose | 4 inch | 25ft

$450.85 - $450.85

$450.85

$327.83

$327.83 - $327.83

$327.83

Flexaust
Flexadux Flx-Thane® HD

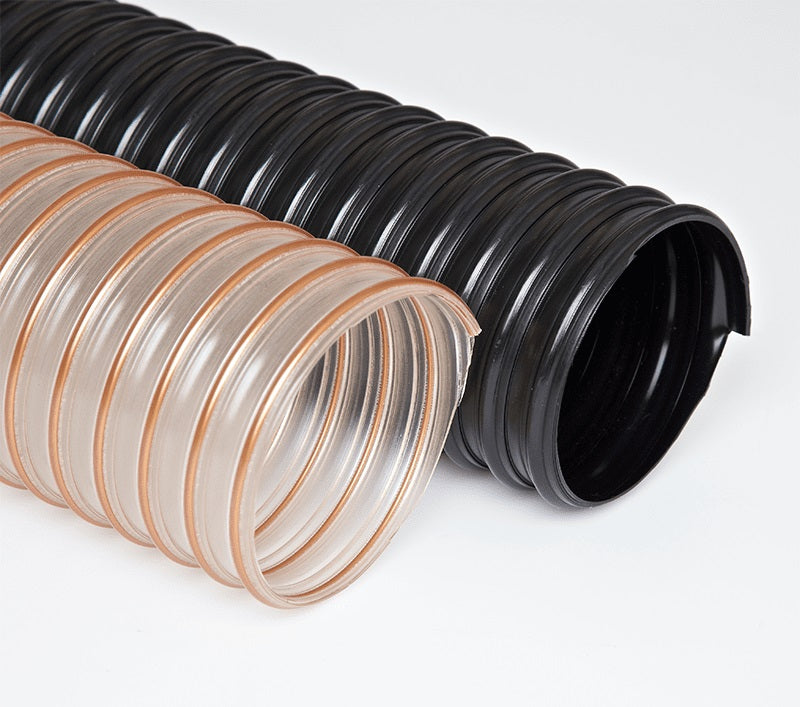

Heavy weight clear or black polyurethane hose reinforced with a bronze coated spring steel wire helix.

Quantity

Specifications for Variant SKU: 4-Flx-Thane-HD-25-Clear Flexaust \| 25 \|
Brand:	Flexadux PU
Series:	Flx-Thane HD
Hose Color(s):	Black, Clear/Semi-Clear
Internal Diameter:	4in
Tubing Construction:	Polyurethane

SPECIFICATIONS

Other Features:
Applications:	Agricultural, Concrete Transport, Lawn & Leaf Collection, Fertilizer Broadcasting, Food Grade, Foundry Sand Transfer, Street & Parking Lot Sweepers	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Heavy weight clear or black polyurethane
Reinforcement:	Bronze coated spring steel wire helix	Cover:	N/A
Temperature Range:	-65 deg. F to 225 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Great abrasion resistance & high tear strength. Superior chemical resistance. Excellent flexibility. Designed for applications with wide temperature ranges. Ideal for severe service applications. Very good low temperature flexibility. Clear is manufactured with FDA acceptable materials.

Part Number 25 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 25ft (Lbs/Ft)
Flx-Thane HD 2in	2"	.035"	2"	2:1	29	32	8.75 lbs
Flx-Thane HD 2.5in	2.5"	N/A	N/A	N/A	N/A	N/A	N/A
Flx-Thane HD 3in	3"	.035"	3"	2:1	29	32	13.75 lbs
Flx-Thane HD 3.5in	3.5"	N/A	N/A	N/A	N/A	N/A	N/A
Flx-Thane HD 4in	4"	.045"	3.5"	2:1	29	30	12.5 lbs
Flx-Thane HD 5in	5"	.040"	4"	2:1	17	30	27.5 lbs
Flx-Thane HD 6in	6"	.045"	5"	2:1	15	24	30 lbs
Flx-Thane HD 7in	7"	.045"	7"	2:1	12	22	35 lbs
Flx-Thane HD 8in	8"	.045"	8"	2:1	9	20	42.5 lbs
Flx-Thane HD 10in	10"	.045"	9"	2:1	4	17	47.5 lbs
Flx-Thane HD 12in	12"	.045"	11"	2:1	2.5	14	60 lbs
Flx-Thane HD 14in	14"	.045"	13"	2:1	3.5	12	80 lbs
Flx-Thane HD 16in	16"	.045"	15"	2:1	2.5	11	92.5 lbs
Flx-Thane HD 18in	18"	.045"	17"	2:1	1.5	10	102.5 lbs
Flx-Thane HD 20in	20"	.045"	19"	2:1	1	9	115 lbs
Flx-Thane HD 24in	24"	.045"	23	2:1	.2	3	140 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
