5-Flx-Thane-LD-25 Flexaust Flx-Thane LD 5 inch Air, Fume, and Dust Duct Hose - 25ft
5-Flx-Thane-LD-25 Flexaust Flx-Thane LD 5 inch Air, Fume, and Dust Duct Hose - 25ft
5-Flx-Thane-LD-25 Flexaust Flx-Thane LD 5 inch Air, Fume, and Dust Duct Hose - 25ft
5-Flx-Thane-LD-25 Flexaust Flx-Thane LD 5 inch Air, Fume, and Dust Duct Hose - 25ft

5-Flx-Thane-LD-25 by Flexaust | Flx-Thane LD | Air, Fume, and Dust Duct Hose | 5 inch | 25ft

$228.52 - $228.52
$228.52
$205.67
$205.67 - $205.67
$205.67

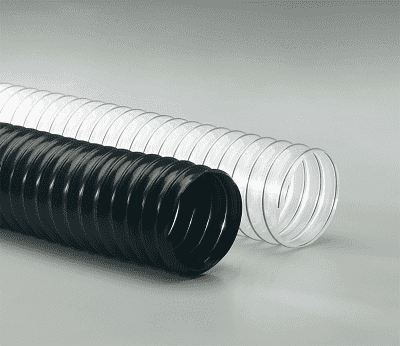

Flexaust Flexadux Flx-Thane® LD Light weight clear or black polyurethane hose reinforced with a bronze coated spring steel wire helix. Available in Clear or Black.
Specifications for Variant SKU: 5-Flx-Thane-LD-25-Black Flexaust | 25 |
Brand: Flexadux PU
Series: Flx-Thane LD
Hose Color(s): Black, Clear/Semi-Clear
Internal Diameter: 5in
Tubing Construction: Polyurethane

SPECIFICATIONS

Applications: Aluminum Refractory, Cold Air Supply, Dust Collection, Food Grade, Hull Sanding Equipment, Insulation Blowing & Removal, Oil Mist Extraction, Paint Spray Extraction, Pharmaceutical, Printing, Sheet Metal, Textile Fiber Collection, Ultra Violet Dryers, Vapor Recovery, Woodworking/Furniture Industry SAE Rating: N/A
Other Ratings: N/A Tube: Light weight clear or black polyurethane
Reinforcement: Bronze coated spring steel wire Cover: N/A
Temperature Range: 65 deg. F to 225 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Great compressibility.
  • Great abrasion resistance.
  • Superior chemical resistance.
  • Excellent flexibility.
  • Designed for applications with wide temperature ranges.
  • Clear is manufactured with FDA acceptable materials.
Part Number 25 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft)
Flx-Thane LD 2in 2" .015" 2" 3:1 29 30 6.25 lbs
Flx-Thane LD 2.5in 2.5" .020" 2.75" 4:1 19 30 8.75 lbs
Flx-Thane LD 3in 3" .020" 3.25" 4:1 29 30 10 lbs
Flx-Thane LD 4in 4" .020" 3.75" 4:1 24 22 12.5 lbs
Flx-Thane LD 5in 5" .020" 4.5" 4:1 13 18 15 lbs
Flx-Thane LD 5.5in 5.5" N/A N/A N/A N/A N/A N/A
Flx-Thane LD 6in 6" .020" 5.25" 4:1 8 15 17.5 lbs
Flx-Thane LD 7in 7" .020" 5.88" 5:1 8 10 20 lbs
Flx-Thane LD 8in 8" .020" 6.5" 5:1 2 7 22.5 lbs
Flx-Thane LD 9in 9" N/A N/A N/A N/A N/A N/A
Flx-Thane LD 10in 10" .020" 7.5" 5:1 2 7 30 lbs
Flx-Thane LD 12in 12" .020" 9" 5:1 1.7 6 35 lbs
Flx-Thane LD 14in 14" .020" 12" 5:1 1.1 5 40 lbs
Flx-Thane LD 16in 16" .020" 14" 5:1 .7 4.6 45 lbs
Flx-Thane LD 18in 18" .020" 16" 5:1 .5 4.1 50 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
