5-Flx-Thane-SE-50 Flexaust Flx-Thane SE 5 inch Air, Dust, and Material Handling Duct Hose - 50ft
5-Flx-Thane-SE-50 Flexaust Flx-Thane SE 5 inch Air, Dust, and Material Handling Duct Hose - 50ft
5-Flx-Thane-SE-50 Flexaust Flx-Thane SE 5 inch Air, Dust, and Material Handling Duct Hose - 50ft
5-Flx-Thane-SE-50 Flexaust Flx-Thane SE 5 inch Air, Dust, and Material Handling Duct Hose - 50ft

5-Flx-Thane-SE-50 by Flexaust | #8631050050 | Flx-Thane SE | Air, Dust, and Material Handling Duct Hose | 5 inch | 50ft

Save $440.67 Save $440.67
$1,101.67
$1,101.67 - $1,101.67
$1,101.67
$661.00
$661.00 - $661.00
$661.00

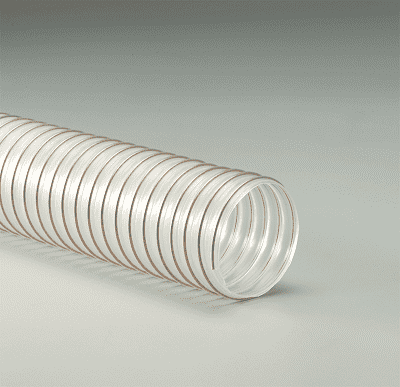

Flexaust Flexadux Flx-Thane® SE Self-extinguishing medium weight clear polyurethane hose reinforced with a bronze coated spring steel wire helix.

Package Quantity: 50 FT

Specifications for Variant SKU: 5-Flx-Thane-SE-50 Flexaust | 50 |
Brand: Flexadux PU
Series: Flx-Thane SE
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 5in
Tubing Construction: Polyurethane

SPECIFICATIONS

Applications: Shipyards, Welding Fume Extraction SAE Rating: N/A
Other Ratings: N/A Tube: Self-extinguishing medium weight clear polyurethane
Reinforcement: Bronze coated spring steel wire helix Cover: N/A
Temperature Range: -65 deg. F to 225 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Halogen-free.
  • Good compressibility.
  • Great abrasion resistance & high tear strength.
  • Superior chemical resistance.
  • Excellent flexibility.
  • Designed for applications with wide temperature ranges.
  • Good low temperature flexibility.
  • Manufactured with flame retardant materials.
Part Number 25 ft Reels Part Number 50 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft) Weight - 50ft (Lbs/Ft)
Flx-Thane SE 2in Flx-Thane SE 2in 2" .030" 2" 3:1 29 30 6.25 lbs 12.5 lbs
Flx-Thane SE 2.5in Flx-Thane SE 2.5in 2.5" .030" 2.5" 3:1 29 30 8 lbs 16 lbs
Flx-Thane SE 3in Flx-Thane SE 3in 3" .030" 3" 3:1 29 29 10 lbs 20 lbs
Flx-Thane SE 4in Flx-Thane SE 4in 4" .030" 4" 3:1 29 25 17.5 lbs 35 lbs
Flx-Thane SE 5in Flx-Thane SE 5in 5" .030" 5" 3:1 17 22 22.5 lbs 45 lbs
Flx-Thane SE 6in Flx-Thane SE 6in 6" .030" 6" 3:1 15 19 25 lbs 50 lbs
Flx-Thane SE 8in Flx-Thane SE 8in 8" .030" 8" 3:1 9 14 37.5 lbs 75 lbs
Flx-Thane SE 10in Flx-Thane SE 10in 10" .030" 8" 3:1 4 11 40 lbs 80 lbs
Flx-Thane SE 12in Flx-Thane SE 12in 12" .030" 10" 3:1 2.2 10 50 lbs 100 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
