3-GPE-25 Flexaust GPE 3 inch Air and Fume Duct Hose - 25ft

3-GPE-25 by Flexaust | #6630001025 | GPE Series | Air and Fume Duct Hose | 3 inch | 25ft

Save $5.96

$59.63

$59.63 - $59.63

$59.63

$53.67

$53.67 - $53.67

$53.67

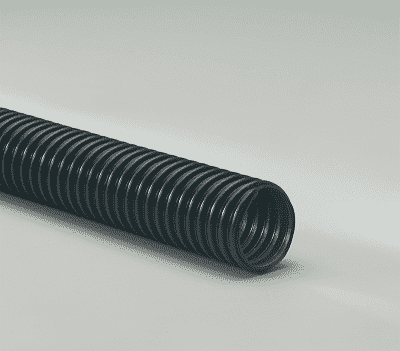

Flexaust Genesis GPE Air and Fume Duct Hose Light weight black polyethylene hose reinforced with an integral polyethylene helix

Package Quantity: 25 FT

Quantity

Specifications for Variant SKU: 3-GPE-25 Flexaust \| 25 \|
Brand:	Genesis
Series:	GPE
Hose Color(s):	Black
Internal Diameter:	3in
Tubing Construction:	Polyethylene
Special Properties:	Outer Helix Protection

SPECIFICATIONS

Other Features:
Applications:	A/C Ventilation, Bilge Pumping, Bus Ventilation, Cab Ventilation, Circuit Board Cooling, Electronic Panel Cooling, Limo A/C Duct, Pipe Organs, Stereo Speakers	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Light weight black polyethylene
Reinforcement:	Integral polyethylene helix	Cover:	N/A
Temperature Range:	-40 deg. F to 140 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Suited for low pressure air movement & fume extraction. Excellent for light vacuum applications. Light weight & very flexible. Economical choice for woodworking & dust collection applications. Moderate abrasion resistance. Crush resistant.

Part Number 25 ft Reels	Part Number 50 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 25ft (Lbs/Ft)	Weight - 50ft (Lbs/Ft)
GPE 2in	GPE 2in	2"	N/A	2.5"	N/A	29	19	4.5 lbs	9 lbs
GPE 2.5in	GPE 2.5in	2.5"	N/A	3"	N/A	16	11	5.5 lbs	11 lbs
GPE 3in	GPE 3in	3"	N/A	4"	N/A	10	11	6.75 lbs	13.5 lbs
GPE 4in	GPE 4in	4"	N/A	7"	N/A	8	10	9 lbs	18 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
