1.75-GS-12 Flexaust GS 1.75 inch Air and Fume Duct Hose - 12ft
1.75-GS-12 Flexaust GS 1.75 inch Air and Fume Duct Hose - 12ft
1.75-GS-12 Flexaust GS 1.75 inch Air and Fume Duct Hose - 12ft
1.75-GS-12 Flexaust GS 1.75 inch Air and Fume Duct Hose - 12ft

1.75-GS-12 by Flexaust | #2650175012 | GS | Air and Fume Duct Hose | 1.75 inch | 12ft

Save $91.28 Save $91.28
$228.20
$228.20 - $228.20
$228.20
$136.92
$136.92 - $136.92
$136.92

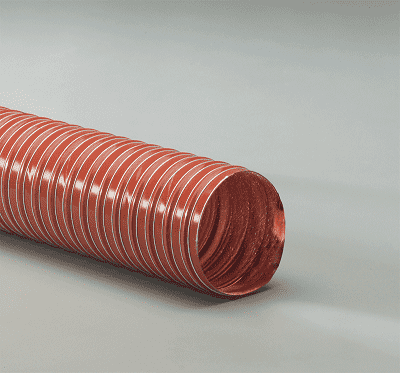

Flexaust Heat-Flex GS Air and Fume Duct Hose Double-ply iron oxide red silicone coated fiberglass fabric hose reinforced with a spring steel wire helix & external filament fiberglass cord.

Package Quantity: 12 FT

Specifications for Variant SKU: 1.75-GS-12 Flexaust | 12 |
Brand: Heat-Flex
Series: GS
Hose Color(s): Red
Internal Diameter: 1.75in
Tubing Construction: Silicone Coated Fiberglass

SPECIFICATIONS

Applications: Aircraft, Automotive, Brake Ducting, Brick Kilns, Defroster/Heater, Dry Cleaning, Drying Systems, Foundries, Garage Exhaust, Glass Drying, Heater, High Temperature, Paper Mills, Plastics Industry, Rocket Support, Tractor Pull Exhaust, Transmission Cooling, Vehicle Exhaust Systems SAE Rating: N/A
Other Ratings: N/A Tube: Double-ply iron oxide red silicone coated fiberglass fabric
Reinforcement: Spring steel wire helix & external filament fiberglass cord Cover: N/A
Temperature Range: -65 deg. F to 600 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Suited for high temperature air handling applications.
  • The narrow pitch allows for tight bending radius while maintaining a smooth air flow.
  • Ideal for plastic processing applications.
  • Non-kinking.
  • Resistant to many oils & solvents, ozone, water, fungus & alkalis.
  • Not recommended for continuous flexing.
Part Number 12 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 12ft (Lbs/Ft)
GS 1in 1" N/A 1.2" 3:1 29 30 1.44 lbs
GS 1.25in 1.25" N/A N/A N/A N/A N/A N/A
GS 1.5in 1.5" N/A 1.8" 3.7:1 29 30 2.04 lbs
GS 1.75in 1.75" N/A N/A N/A N/A N/A N/A
GS 2in 2" N/A 2" 3.7:1 29 30 3 lbs
GS 2.5in 2.5" N/A 2.3" 3.7:1 29 30 3.6 lbs
GS 3in 3" N/A 2.5" 3.7:1 29 30 3.96 lbs
GS 3.5in 3.5" N/A 2.5" 3.7:1 29 30 4.8 lbs
GS 4in 4" N/A 3" 4.8:1 27 30 5.76 lbs
GS 4.5in 4.5" N/A 3.2" 4.8:1 20 30 6.48 lbs
GS 5in 5" N/A 3.5" 4.8:1 14 30 7.08 lbs
GS 6in 6" N/A 4" 6:1 9 19 7.44 lbs
GS 7in 7" N/A N/A N/A N/A N/A N/A
GS 8in 8" N/A 4" 6:1 9 14 9.48 lbs
GS 10in 10" N/A 5" 6:1 1 11 11.76 lbs
GS 12in 12" N/A 5" 6:1 .6 9.4 14.4 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.
