14-HT-25 Flexaust HT 14 inch Material Handling Duct Hose - 25ft

14-HT-25 by Flexaust | #8511140025 | HT | Material Handling Duct Hose | 14 inch | 25ft

Save $477.33

$1,193.33

$1,193.33 - $1,193.33

$1,193.33

$716.00

$716.00 - $716.00

$716.00

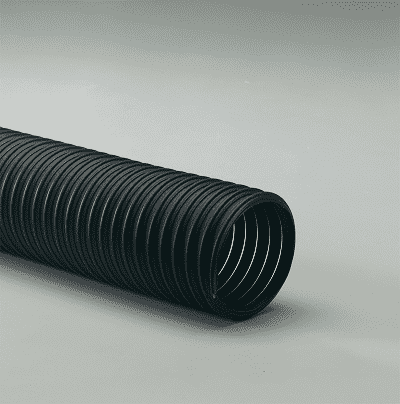

Flexaust Flexadux HT Material Handling Duct Hose Heavy weight black thermoplastic rubber hose reinforced with a spring steel wire helix.

Package Quantity: 25 FT

Specifications for Variant SKU: 14-HT-25 Flexaust \| 25 \|
Brand:	Flexadux TR
Series:	HT
Hose Color(s):	Black
Internal Diameter:	14in
Tubing Construction:	Thermoplastic Rubber

SPECIFICATIONS

Other Features:
Applications:	Foundry Sand Transfer, Granule Transport, Hull Sanding Equipment, Ozone, Peat Moss Vacuum, Sand & Gravel Suction, Street & Parking Lot Sweepers, Wave Pool Blowers	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Heavy weight black thermoplastic rubber
Reinforcement:	Spring steel wire helix	Cover:	N/A
Temperature Range:	-60 deg. F to 275 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Suitable for more demanding positive & negative pressure applications. Designed for applications with wide temperature ranges. Great moisture & UV resistance. Excellent chemical resistance. Smooth interior assures minimal friction loss & efficient air flow.

Part Number 25 ft Reels	Part Number 50 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 25ft (Lbs/Ft)	Weight - 50ft (Lbs/Ft)
HT 1.5in	HT 1.5in	1.5"	.035"	2"	2:1	29	30	6.75 lbs	35 lbs
HT 2in	HT 2in	2"	.035"	3.29"	2:1	29	24	8.5 lbs	17 lbs
HT 2.5in	HT 2.5in	2.5"	.035"	3.77"	2:1	29	19	9 lbs	18 lbs
HT 3in	HT 3in	3"	.035"	4.25"	2:1	29	16	12.5 lbs	25 lbs
HT 4in	HT 4in	4"	.045"	4.75"	2:1	29	12	18 lbs	36 lbs
HT 5in	HT 5in	5"	.045"	5"	2:1	16	10	22.25 lbs	44.5 lbs
HT 6in	HT 6in	6"	.045"	5.25"	3:1	8.3	9	26.25 lbs	52.5 lbs
HT 8in	HT 8in	8"	.054"	6.9"	3:1	3.4	7	35 lbs	70 lbs
HT 10in	HT 10in	10"	.054"	8"	3:1	3.4	6	53 lbs	106 lbs
HT 12in	HT 12in	12"	.054"	10	3:1	2	5.5	62.5 lbs	125 lbs
HT 14in	HT 14in	14"	.054"	12"	3:1	.72	5.2	67.5 lbs	135 lbs
HT 16in	HT 16in	16"	.054"	14"	3:1	.5	4.6	75 lbs	150 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
