1-MG-U-50 Flexaust #MGU-R100050B MG-U 1 inch Air, Fume, Dust, and Material Handling Duct Hose - 50ft

1-MG-U-50 Flexaust MG-U 1 inch Air, Fume, Dust, and Material Handling Duct Hose - 50ft

1-MG-U-50 by Flexaust | #MGU-R100050 | B MG-U Series | Air, Fume, Dust, and Material Handling Duct Hose | 1 inch | 50ft

Save $72.00

$180.00

$180.00 - $180.00

$180.00

$108.00

$108.00 - $108.00

$108.00

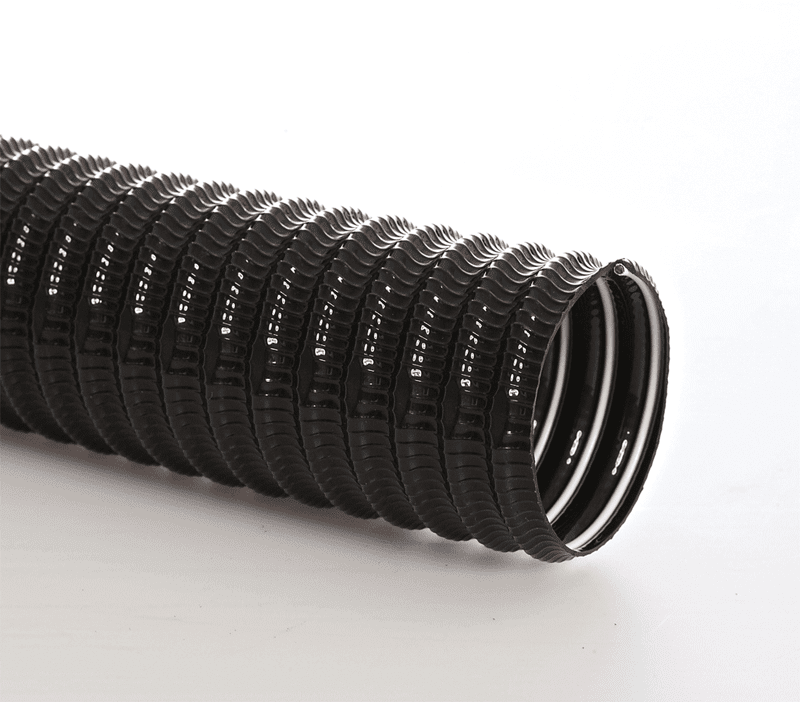

Flexaust Dayflex MG-U (MGU) Air, Fume, Dust, and Material Handling Duct Hose Black elastomer polyurethane hose reinforced with a vinyl coated spring steel wire helix

Package Quantity: 50 FT

Specifications for Variant SKU: 1-MG-U-50 Flexaust \| 50 \|
Brand:	Dayflex
Series:	MG-U
Hose Color(s):	Black
Internal Diameter:	1in
Tubing Construction:	Polyurethane

SPECIFICATIONS

Other Features:
Applications:	Electronic Panel Cooling, Hull Sanding Equipment, Industrial Vacuum Cleaners, Sprayers, Starch Transfer, Ultra Violet Dryers, Vapor Recovery	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Black elastomer polyurethane
Reinforcement:	Vinyl coated spring steel wire helix	Cover:	N/A
Temperature Range:	-60 deg. F to 160 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Light weight & flexible. Good chemical resistance. Excellent abrasion resistance.

Part Number 50 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 50ft (Lbs/Ft)
MG-U .75in	.75"	N/A	.875"	1.6:1	29	20	5 lbs
MG-U 1in	1"	N/A	1"	1.6:1	29	20	7 lbs
MG-U 1.25in	1.25"	N/A	1.25"	1.6:1	29	20	8.5 lbs
MG-U 1.5in	1.5"	N/A	1.5"	1.6:1	29	20	10.5 lbs
MG-U 2in	2"	N/A	2.25"	1.6:1	29	20	16.5 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
