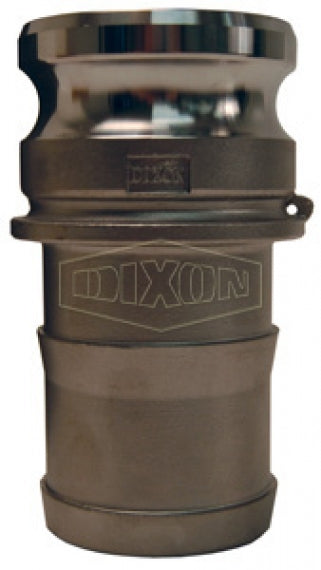

G125-E-SS by Dixon Valve | Global Cam & Groove Adapter | Type E | 1-1/4" Adapter x 1-1/4" Hose Shank | 316 Investment Cast Stainless Steel

G125-E-SS by Dixon Valve | Global Cam & Groove Adapter | Type E | 1-1/4" Adapter x 1-1/4" Hose Shank | 316 Investment Cast Stainless Steel

Save $14.90 Save $14.90
$37.25
$37.25 - $37.25
$37.25
$22.35
$22.35 - $22.35
$22.35

Dixon Valve
Global Cam & Groove | Type E Adapter | Adapter x Hose Shank

Designed for use with liquids.
Specifications for Variant SKU: G125-E-SS Dixon
Shape (Orientation): Straight
Cam Type: Type E
Ends Configuration: 1-1/4in Hose Barb, 1-1/4in Male Cam & Groove
Material(s): 316 Stainless Steel
Construction:
  • Made to Dixon specifications and branded Dixon.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.
  • No standard exists for the 1/2", 5" and 8", and generally these sizes do not interchange with other manufacturers' products.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Designed to interchange with all products produced to A-A-59326D.
A380 Permanent
Mold Aluminum
Part Number		 ASTMC38000
Forged Brass
Part Number		 316 Investment Cast
Stainless Steel
Part Number		 Size Max. Operating Pressure
G50-E-AL* G50-E-BR* G50-E-SS* 1/2" 150 PSI
G75-E-AL G75-E-BR G75-E-SS 3/4" 250 PSI
G100-E-AL G100-E-BR G100-E-SS 1" 250 PSI
G125-E-AL G125-E-BR G125-E-SS 1-1/4" 250 PSI
G150-E-AL G150-E-BR G150-E-SS 1-1/2" 250 PSI
G200-E-AL G200-E-BR G200-E-SS 2" 250 PSI
G250-E-AL G250-E-BR G250-E-SS 2-1/2" 150 PSI
G300-E-AL G300-E-BR G300-E-SS 3" 125 PSI
G400-E-AL G400-E-BR G400-E-SS 4" 100 PSI
G500-E-AL* - - 5" 75 PSI
G600-E-AL - G600-E-SS 6" 75 PSI
G800-E-AL* - - 8" 50 PSI

* No standard exists for the 1/2", 5", and 8", and generally these sizes do not interchange with other manufacturers' products.
