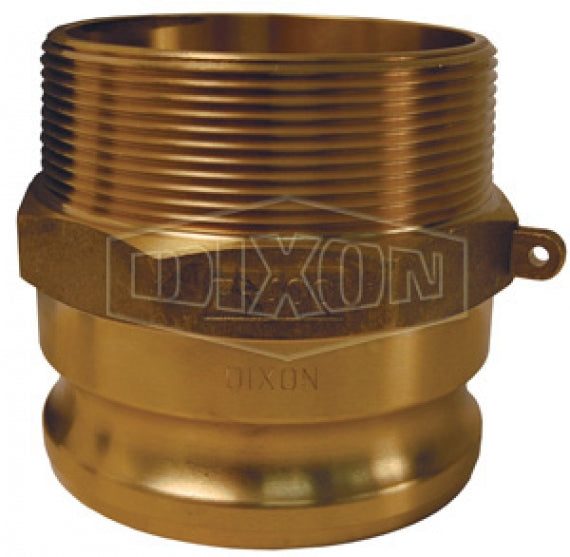

G150-F-BR by Dixon Valve | Global Cam & Groove Adapter | Type F | 1-1/2" Adapter x 1-1/2" Male NPT | ASTMC38000 Forged Brass

G150-F-BR by Dixon Valve | Global Cam & Groove Adapter | Type F | 1-1/2" Adapter x 1-1/2" Male NPT | ASTMC38000 Forged Brass

Save $2.26 Save $2.26
$26.79
$26.79 - $26.79
$26.79
$24.53
$24.53 - $24.53
$24.53

Dixon Valve
Global Cam & Groove | Type E Adapter | Adapter x Hose Shank

Designed for use with liquids.
Specifications for Variant SKU: G150-F-BR Dixon
Shape (Orientation): Straight
Cam Type: Type F
Ends Configuration: 1-1/2in Male NPT, 1-1/2in Male Cam & Groove
Material(s): Brass
Construction:
  • Made to Dixon specifications and branded Dixon.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.
  • No standard exists for the 1/2", 5" and 8", and generally these sizes do not interchange with other manufacturers' products.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Interchanges with all products produced to A-A-59326D.
A380 Permanent
Mold Aluminum
Part Number		 ASTMC38000
Forged Brass
Part Number		 316 Investment Cast
Stainless Steel
Part Number		 Size Max. Operating Pressure
G50-F-AL* G50-F-BR* G50-F-SS* 1/2" 150 PSI
G75-F-AL G75-F-BR G75-F-SS 3/4" 250 PSI
G100-F-AL G100-F-BR G100-F-SS 1" 250 PSI
G125-F-AL G125-F-BR G125-F-SS 1-1/4" 250 PSI
G150-F-AL G150-F-BR G150-F-SS 1-1/2" 250 PSI
G200-F-AL G200-E-BR G200-F-SS 2" 250 PSI
G250-F-AL G250-F-BR G250-F-SS 2-1/2" 150 PSI
G300-F-AL G300-F-BR G300-F-SS 3" 125 PSI
G400-F-AL G400-F-BR G400-F-SS 4" 100 PSI
G500-F-AL* - - 5" 75 PSI
G600-F-AL - G600-F-SS 6" 75 PSI

* No standard exists for the 1/2", 5", and 8", and generally these sizes do not interchange with other manufacturers' products.
