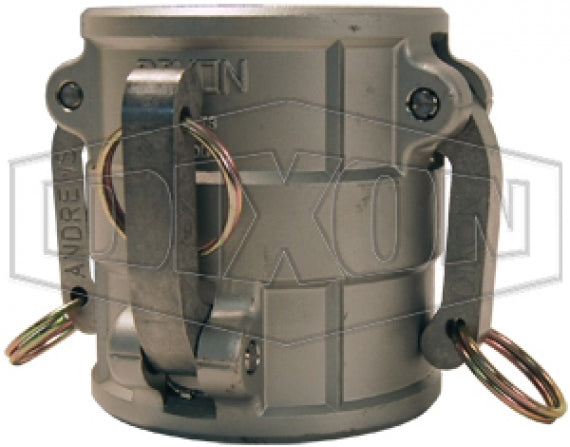

G200-DD-SS by Dixon Valve | Global Cam & Groove Spool Coupler | Type DD | 2" Coupler x 2" Coupler | 316 Investment Cast Stainless Steel

Name: G200-DD-SS by Dixon Valve | Global Cam & Groove Spool Coupler | Type DD | 2" Coupler x 2" Coupler | 316 Investment Cast Stainless Steel
Brand: Dixon
SKU: G200-DD-SS Dixon
Price: 80.83 USD
Availability: InStock

Save $53.89

$134.72

$134.72 - $134.72

$134.72

$80.83

$80.83 - $80.83

$80.83

Dixon Valve
Global Cam & Groove | Type DD | Spool Coupler | Coupler x Coupler

Designed for use with liquids.

Specifications for Variant SKU: G200-DD-SS Dixon
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	2in Female Cam & Groove, 2in Female Cam & Groove, Some Ends Match
Material(s):	316 Stainless Steel

Construction:
Made to Dixon specifications and branded Dixon. Nitrile rubber seals standard.
Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating is based on the seal of the mating part. Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Designed to interchange with all products produced to A-A-59326D.

A380 Permanent Mold Aluminum Part Number	316 Investment Cast Stainless Steel Part Number	Coupler x Coupler Size	Max. Operating Pressure
G200-DD-AL	G200-DD-SS	2" x 2"	250 PSI
G300-DD-AL	G300-DD-SS	3" x 3"	125 PSI
G400-DD-AL	G400-DD-SS	4" x 4"	100 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
