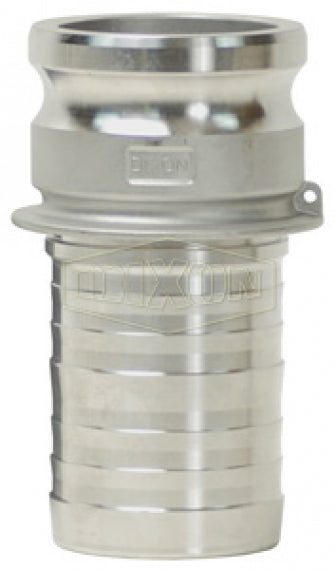

G200-E-SSCR by Dixon Valve | Global Crimp Style Cam & Groove | Type E | 2" Adapter x 2" Hose Shank | 316 Investment Cast Stainless Steel

Name: G200-E-SSCR by Dixon Valve | Global Crimp Style Cam & Groove | Type E | 2" Adapter x 2" Hose Shank | 316 Investment Cast Stainless Steel
Brand: Dixon
SKU: G200-E-SSCR Dixon
Price: 40.75 USD
Availability: InStock

Save $27.17

$67.92

$67.92 - $67.92

$67.92

$40.75

$40.75 - $40.75

$40.75

Dixon Valve & Coupling
Global Crimp Style Cam & Groove | Type E | Adapter x Hose Shank

Designed for use with liquids.

Suitable for use with King Crimp sleeves and ferrules.

Quantity

Specifications for Variant SKU: G200-E-SSCR Dixon
Shape (Orientation):	Straight
Cam Type:	Type E
Ends Configuration:	2in Male Cam & Groove, 2in Hose Barb
Material(s):	316 Stainless Steel

Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon. Only use the crimp style shanks with the crimp style sleeves and ferrules. Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon products.

A380 Permanent Mold Aluminum Part Number	C38000 Forged Brass Part Number	316 Investment Cast Stainless Steel Part Number	Hose I.D.
G100-E-ALCR	G100-E-BRCR	G100-E-SSCR	1"
G150-E-ALCR	G150-E-BRCR	G150-E-SSCR	1-1/2"
G200-E-ALCR	G200-E-BRCR	G200-E-SSCR	2"
G300-E-ALCR	G300-E-BRCR	G300-E-SSCR	3"
G400-E-ALCR	G400-E-BRCR	G400-E-SSCR	4"
G600-E-ALCR	-	G600-E-SSCR	6"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
